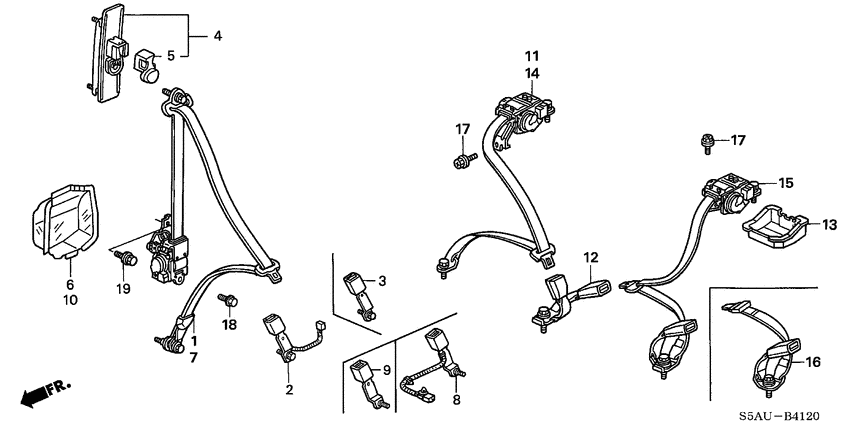

Seatbelts Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Y
- transmission
- 5MT
- Number of doors
- 4
- grade
- VTI-D
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81450-S5A-G02ZE
Tongue
|
81450-S5A-G02ZE |
— | ||
|
2
|
2
81455-S5A-J11ZA
Buckle
|
81455-S5A-J11ZA |
— | ||
|
4
|
4
81460-S4K-A02ZD AdjusterSHOULDER SLIDE *NH220L* |
81460-S4K-A02ZD |
US $41.86 |
||
|
5
|
5
81461-S4K-A02ZD CoverSHOULDER SLIDE ADJUSTER *NH220L* |
81461-S4K-A02ZD |
US $4.90 |
||
|
6
|
6
81491-S5A-J01 ProtectorR. FR. SEATBELT |
81491-S5A-J01 |
US $8.82 |
||
|
7
|
7
81850-S5A-G02ZE
Tongue
|
81850-S5A-G02ZE |
— | ||
|
9
|
9
81855-S5A-J21ZA BuckleL. FR. SEATBELT INNER *NH361L* |
81855-S5A-J21ZA |
US $53.89 |
||
|
10
|
10
81891-S5A-J01 ProtectorL. FR. SEATBELT |
81891-S5A-J01 |
US $8.82 |
||
|
11
|
11
82450-S5A-G02ZD
Tongue
|
82450-S5A-G02ZD |
— | ||
|
12
|
12
82455-S5A-J01ZD BuckleR. RR. SEATBELT INNER *NH178L* |
82455-S5A-J01ZD |
US $81.92 |
||
|
13
|
13
82456-S5A-A00 ProtectorRR. CENTER SEATBELT |
82456-S5A-A00 |
US $13.44 |
||
|
14
|
14
82850-S5A-G02ZD
Tongue
|
82850-S5A-G02ZD |
— | ||
|
15
|
15
82855-S5A-G02ZD BuckleL. RR. SEATBELT INNER *NH178L* |
82855-S5A-G02ZD |
US $273.92 |
||
|
17
|
17
90101-S84-A00 ScrewET, 6X16 |
90101-S84-A00 |
US $1.63 |
||
|
17
|
17
90133-SZ4-003 ScrewET, 7X16 |
90133-SZ4-003 |
US $1.79 |
||
|
18
|
18
90135-S1F-003 BoltFLANGE, 7/16" |
90135-S1F-003 |
US $1.61 |
||
|
19
|
19
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
