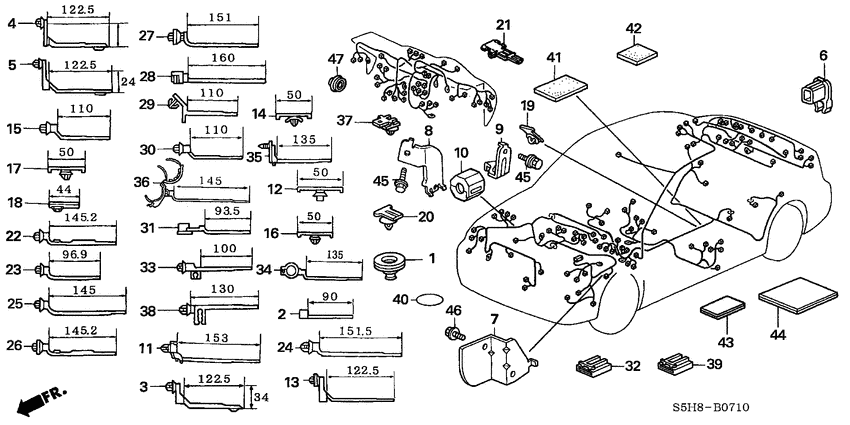

Harness band/bracket (LH) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- PSGD53
- transmission
- 4AT
- Number of doors
- 4
- grade
- LXI
- area code
- PH
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32103-679-000 GrommetWIRE HARNESS(BLACK) |
32103-679-000 |
US $5.74 |
||
|
3
|
3
32132-S6A-003 BandWIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
32132-S6A-003 |
US $2.73 |
||
|
10
|
10
38617-S5A-J01 Filter compNOISE |
38617-S5A-J01 |
US $7.56 |
||
|
15
|
15
91507-SL9-003 ClipWIRE HARNESS (GREEN) (110MM) (7MM HOLE) |
91507-SL9-003 |
from US $1.68 |
||
|
17
|
17
91510-SA5-003 ClipOFFSET(10)(BROWN)(50MM) |
91510-SA5-003 |
US $2.38 |
||
|
18
|
18
91531-S04-003 ClipWIRE HARNESS(NATURAL) (44MM) |
91531-S04-003 |
US $1.33 |
||
|
19
|
19
91531-S84-003 ClipWIRE HARNESS(NATURAL) (44MM)(WITH SEAL) |
91531-S84-003 |
US $2.17 |
||
|
20
|
20
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
22
|
22
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
23
|
23
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
25
|
25
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
||
|
26
|
26
91545-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
91545-SV4-003 |
US $3.11 |
||
|
27
|
27
91545-S2A-003 ClipHARNESS BAND (BROWN) (151MM) (WITH SEAL) |
91545-S2A-003 |
US $1.89 |
||
|
28
|
28
91547-SH3-003 ClipBAND(NATURAL)(160MM) |
91547-SH3-003 |
US $2.52 |
||
|
30
|
30
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
31
|
31
91552-SS0-003 ClipWIRE HARNESS (M5) (BROWN) (93.5MM) |
91552-SS0-003 |
US $1.68 |
||
|
32
|
32
91554-SM4-003 HolderBRACKET (RED) |
91554-SM4-003 |
from US $2.52 |
||
|
33
|
33
91556-SM4-003 ClipBAND (BLACK) (100MM) |
91556-SM4-003 |
US $2.31 |
||
|
34
|
34
91558-SM4-003 ClipTUBE(BLACK)(135MM) |
91558-SM4-003 |
from US $2 |
||
|
36
|
36
91559-S5A-003 HolderHARNESS (BLACK) |
91559-S5A-003 |
from US $2.45 |
||
|
38
|
38
91571-S10-003 ClipWIRE HARNESS (NATURAL) (130MM) |
91571-S10-003 |
US $1.89 |
||
|
39
|
39
91577-SM4-003 HolderBRACKET(NATURAL) |
91577-SM4-003 |
from US $1.54 |
||
|
40
|
40
91619-SE0-000 SealDOOR HOLE, 30MM(BLACK) |
91619-SE0-000 |
from US $1.33 |
||
|
41
|
41
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $2.96 |
||
|
42
|
42
91902-SJ8-003 CushionWIRE HARNESS (50X50) |
91902-SJ8-003 |
US $2.31 |
||
|
44
|
44
91902-S3N-003 PlasterWIRE HARNESS (50X50) |
91902-S3N-003 |
US $1.19 |
||
|
47
|
47
95550-07000 PlugBLIND, 7MM |
95550-07000 |
from US $1.04 |
