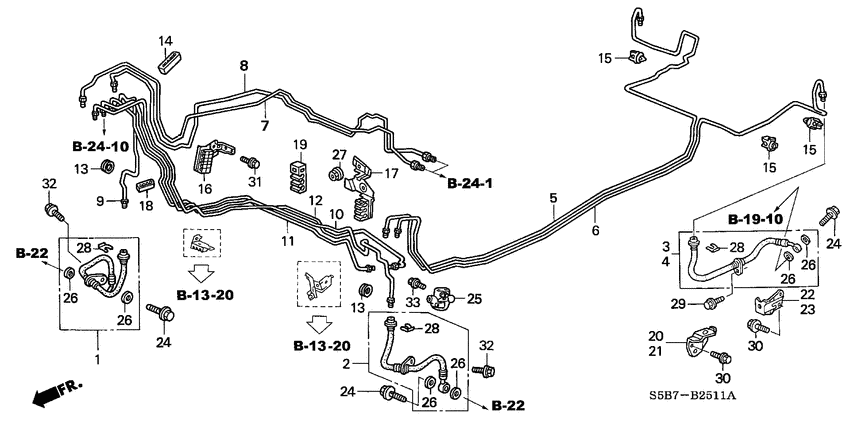

Brake lines (ABS; LH) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KG
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01464-S5B-000 Hose setR. FR. BRAKE |
01464-S5B-000 |
US $49.79 |
||
|
2
|
2
01465-S5B-000 Hose setL. FR. BRAKE |
01465-S5B-000 |
US $49.79 |
||
|
3
|
3
01466-S5A-N00 Hose setR. RR. BRAKE |
01466-S5A-N00 |
US $49.79 |
||
|
4
|
4
01468-S5A-N00 Hose setL. RR. BRAKE |
01468-S5A-N00 |
US $49.79 |
||
|
5
|
5
46330-S5B-020
Pipe comp. c
|
46330-S5B-020 |
— | ||
|
6
|
6
46340-S5B-010 Pipe comp. dBRAKE |
46340-S5B-010 |
US $56.96 |
||
|
7
|
7
46374-S5B-A52 Pipe comp. uBRAKE |
46374-S5B-A52 |
US $42.50 |
||
|
8
|
8
46375-S5B-A52 Pipe comp. vBRAKE |
46375-S5B-A52 |
US $42.50 |
||
|
9
|
9
46376-S5B-000 Pipe comp. wBRAKE |
46376-S5B-000 |
US $13.44 |
||
|
10
|
10
46377-S5B-A50 Pipe comp. xBRAKE |
46377-S5B-A50 |
US $46.08 |
||
|
11
|
11
46378-S5B-A51 Pipe comp. yBRAKE |
46378-S5B-A51 |
US $42.50 |
||
|
12
|
12
46379-S5B-A51
Pipe comp. z
|
46379-S5B-A51 |
— | ||
|
13
|
13
46380-SH3-000 Grommet aBRAKE PIPE |
46380-SH3-000 |
US $2.52 |
||
|
14
|
14
46391-SW3-003 ClipBRAKE PIPE |
46391-SW3-003 |
US $7 |
||
|
15
|
15
46391-S5A-J01 ClipBRAKE PIPE |
46391-S5A-J01 |
US $2.28 |
||
|
16
|
16
46391-S5B-A02 ClipBRAKE PIPE |
46391-S5B-A02 |
US $10.50 |
||
|
17
|
17
46393-S5A-N00 ClipBRAKE PIPE |
46393-S5A-N00 |
US $9.18 |
||
|
18
|
18
46395-SR3-J01 Clip bBRAKE PIPE |
46395-SR3-J01 |
from US $3.08 |
||
|
19
|
19
46396-S7A-003 ClipBRAKE PIPE |
46396-S7A-003 |
US $4.62 |
||
|
20
|
20
46435-S5B-900 Bracket aR. RR. BRAKE HOSE |
46435-S5B-900 |
US $7.98 |
||
|
21
|
21
46436-S5B-900 Bracket aL. RR. BRAKE HOSE |
46436-S5B-900 |
US $7.98 |
||
|
22
|
22
46437-S5A-Z10 Bracket aR. RR. BRAKE HOSE |
46437-S5A-Z10 |
US $9.38 |
||
|
23
|
23
46438-S5A-Z10 Bracket aL. RR. BRAKE HOSE |
46438-S5A-Z10 |
US $8.54 |
||
|
24
|
24
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
25
|
25
46470-S5T-E01 JointFOUR WAY |
46470-S5T-E01 |
US $42.84 |
||
|
26
|
26
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
27
|
27
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
28
|
28
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
29
|
29
93402-080-200-8 Bolt-washer8X20 |
93402-080-200-8 |
from US $0.74 |
||
|
30
|
30
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
31
|
31
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
32
|
32
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
33
|
33
95801-060-450-8 BoltFLANGE, 6X45 |
95801-060-450-8 |
from US $0.74 |
