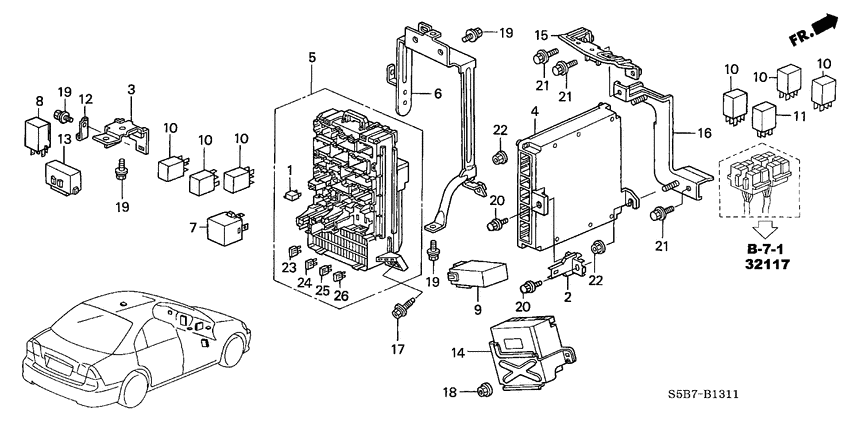

Control unit (CABIN; LH) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KG
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32146-SH3-003 ConnectorDIODE(2P) |
32146-SH3-003 |
from US $7.70 |
||
|
2
|
2
32752-PLM-A00
Stay m
|
32752-PLM-A00 |
— | ||
|
3
|
3
36701-S5A-A00 BracketAUTO CRUISE & SECURITY |
36701-S5A-A00 |
US $6.16 |
||
|
4
|
4
37820-PZA-G11
Control module
|
37820-PZA-G11 |
— | ||
|
5
|
5
38200-S5B-G12 Box assyFUSE |
38200-S5B-G12 |
US $335.36 |
||
|
5
|
5
38200-S5B-G02 Box assyFUSE |
38200-S5B-G02 |
US $335.36 |
||
|
6
|
6
38201-S5A-A10 BracketFUSE BOX |
38201-S5A-A10 |
US $16.13 |
||
|
7
|
7
38300-S5T-003 Relay assyTURN SIGNAL & HAZARD (FR-3321) (MITSUBA) |
38300-S5T-003 |
US $33.41 |
||
|
7
|
7
38300-S5T-004 Relay assyTURN SIGNAL & HAZARD (066500-5080) (DENSO) |
38300-S5T-004 |
US $46.97 |
||
|
8
|
8
38310-S6A-S02
Relay
|
38310-S6A-S02 |
— | ||
|
9
|
9
38385-S5A-G01 Receiver unitKEYLESS ENTRY |
38385-S5A-G01 |
US $183.04 |
||
|
10
|
10
39794-S04-014 Relay assyPOWER (4P) (MICRO ISO) (MATSUSHITA) |
39794-S04-014 |
US $23.49 |
||
|
10
|
10
39794-S04-003 Relay assyPOWER (4P) (MICRO ISO) (MITSUBA) |
39794-S04-003 |
US $15.23 |
||
|
11
|
11
39794-S5A-902 Relay assyENGINE CONTROL MODULE(4P)(DENSO) |
39794-S5A-902 |
US $21.12 |
||
|
11
|
11
39794-S5A-901 Relay assyENGINE CONTROL MODULE(4P)(MITSUBA) |
39794-S5A-901 |
US $16.77 |
||
|
12
|
12
39796-ST3-E00 BracketKEY LIGHT TIMER |
39796-ST3-E00 |
US $7 |
||
|
13
|
13
39880-S5A-G01 Security unit |
39880-S5A-G01 |
US $195.84 |
||
|
14
|
14
39980-S5B-G02 Eps unit |
39980-S5B-G02 |
US $421.12 |
||
|
15
|
15
79101-S5D-A01 BracketHEATER |
79101-S5D-A01 |
US $4.20 |
||
|
16
|
16
79820-S5A-A00 BracketENGINE CONTROL MODULE |
79820-S5A-A00 |
US $7.70 |
||
|
17
|
17
90137-SF1-000 Bolt-washer6X25 |
90137-SF1-000 |
US $2.12 |
||
|
18
|
18
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
19
|
19
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
20
|
20
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
21
|
21
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
22
|
22
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
23
|
23
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
24
|
24
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
25
|
25
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
26
|
26
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
