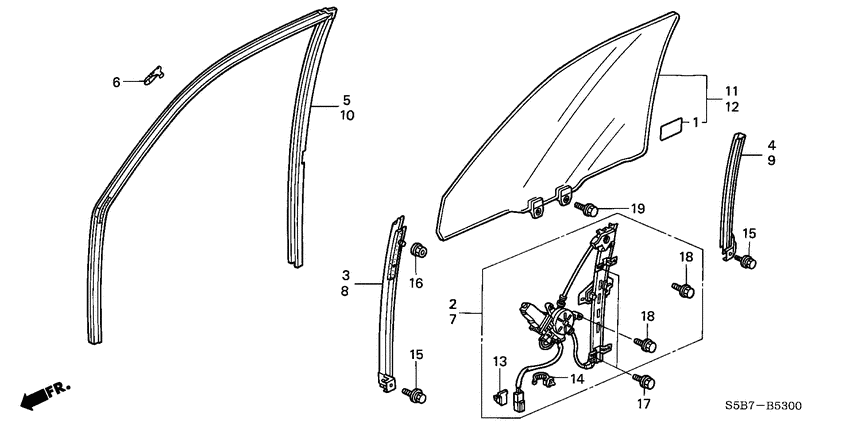

Front door glass/ door regulator Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KG
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39885-S5A-G11 LabelIMMOBILIZER & SECURITY |
39885-S5A-G11 |
US $2.44 |
||
|
2
|
2
72210-S5A-G04
Regulator assy
|
72210-S5A-G04 |
— | ||
|
3
|
3
72230-S5A-003 SashR. FR. DOOR FR. LOWER |
72230-S5A-003 |
US $21.38 |
||
|
4
|
4
72231-S5A-003 SashR. FR. DOOR CENTER LOWER |
72231-S5A-003 |
US $13.57 |
||
|
5
|
5
72235-S5A-E01 RunchannelR. FR. DOOR |
72235-S5A-E01 |
US $68.48 |
||
|
6
|
6
72237-S84-G01 ClipFR. DOOR GLASS GUIDE |
72237-S84-G01 |
US $4.90 |
||
|
7
|
7
72250-S5A-G04
Regulator assy
|
72250-S5A-G04 |
— | ||
|
8
|
8
72270-S5A-003
Sash
|
72270-S5A-003 |
— | ||
|
9
|
9
72271-S5A-003 SashL. FR. DOOR CENTER LOWER |
72271-S5A-003 |
US $13.57 |
||
|
10
|
10
72275-S5A-E01 RunchannelL. FR. DOOR |
72275-S5A-E01 |
US $68.48 |
||
|
11
|
11
73300-S5A-E12 Glass assyR. FR. DOOR (GREEN)(ASAHI) |
73300-S5A-E12 |
US $253.44 |
||
|
12
|
12
73350-S5A-E12 Glass assyL. FR. DOOR (GREEN)(ASAHI) |
73350-S5A-E12 |
US $266.24 |
||
|
13
|
13
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
14
|
14
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
15
|
15
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
16
|
16
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
17
|
17
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
18
|
18
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
19
|
19
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
