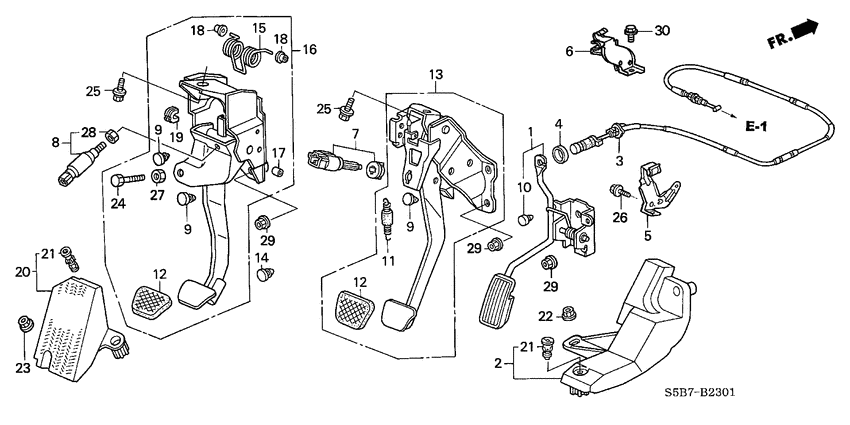

Pedal (LH) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KG
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-S6M-A03
Pedal assy
|
17800-S6M-A03 |
— | ||
|
2
|
2
17818-S5A-A01
Stopper
|
17818-S5A-A01 |
— | ||
|
3
|
3
17910-S5B-G01
Wire
|
17910-S5B-G01 |
— | ||
|
4
|
4
17921-SA4-730 SealTHROTTLE CABLE |
17921-SA4-730 |
US $5.86 |
||
|
5
|
5
17930-S5B-952 ClampTHROTTLE WIRE |
17930-S5B-952 |
US $7.98 |
||
|
6
|
6
17931-S5B-A01 ClampTHROTTLE WIRE |
17931-S5B-A01 |
US $7.98 |
||
|
7
|
7
35350-S5A-J03
Switch assy
|
35350-S5A-J03 |
— | ||
|
8
|
8
35710-SE3-A01
Switch assy
|
35710-SE3-A01 |
— | ||
|
9
|
9
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.38 |
||
|
10
|
10
46505-SA7-000 PadPEDAL STOPPER |
46505-SA7-000 |
US $3.92 |
||
|
11
|
11
46530-S5A-003
Spring assy
|
46530-S5A-003 |
— | ||
|
12
|
12
46545-SA5-000 Cover, Pedal |
46545-SA5-000 |
from US $5.03 |
||
|
13
|
13
46600-S5A-G01 Pedal assyBRAKE |
46600-S5A-G01 |
US $74.24 |
||
|
14
|
14
46905-SK7-000
Stopper
|
46905-SK7-000 |
— | ||
|
15
|
15
46907-S5A-A01
Spring
|
46907-S5A-A01 |
— | ||
|
16
|
16
46910-S5B-G01 Pedal assyCLUTCH |
46910-S5B-G01 |
US $81.92 |
||
|
17
|
17
46911-SD4-930 BushPEDAL PIN |
46911-SD4-930 |
from US $2.12 |
||
|
18
|
18
46981-S2A-003 Bush aCLUTCH ASSISTANT |
46981-S2A-003 |
from US $2.52 |
||
|
19
|
19
46982-S2A-003 Bush bASSISTANT |
46982-S2A-003 |
from US $2.17 |
||
|
20
|
20
46991-S5A-A01
Bracket comp.
|
46991-S5A-A01 |
— | ||
|
21
|
21
46992-SV4-003 ClipFOOTREST |
46992-SV4-003 |
US $1.70 |
||
|
22
|
22
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
23
|
23
90301-S5A-000 NutPAINT CUTTING, 6MM |
90301-S5A-000 |
US $2.17 |
||
|
24
|
24
92201-10030-0H BoltHEX., 10X30 |
92201-10030-0H |
US $0.74 |
||
|
25
|
25
93404-080-160-8 Bolt-washer8X16 |
93404-080-160-8 |
from US $0.67 |
||
|
26
|
26
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
27
|
27
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
28
|
28
94002-120-800-S NutHEX., 12MM |
94002-120-800-S |
from US $0.59 |
||
|
29
|
29
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
30
|
30
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
