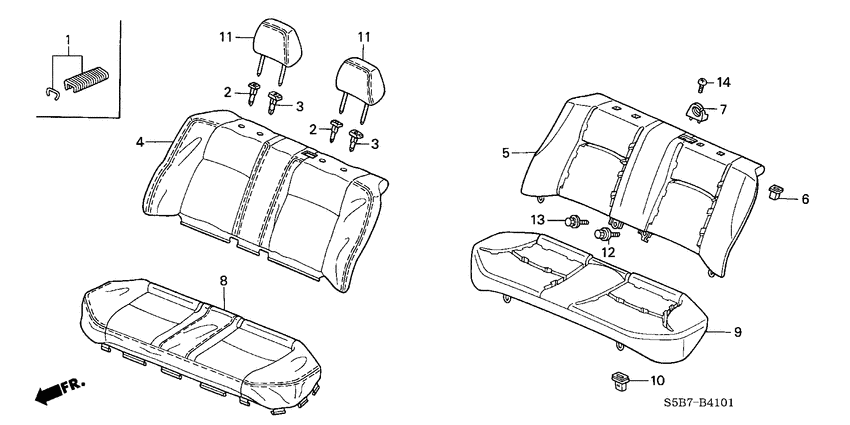

Rear seat (LH) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KG
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.48 |
||
|
2
|
2
81143-SM4-J01ZA Guide compHEADREST FREE *NH167L* |
81143-SM4-J01ZA |
US $6.02 |
||
|
3
|
3
81144-S0A-J01ZF Guide compHEADREST LOCK *NH167L* |
81144-S0A-J01ZF |
US $7.42 |
||
|
4
|
4
82121-S5B-G01ZA CoverRR. SEATBACK TRIM (LEATHER) *NH167L* |
82121-S5B-G01ZA |
US $1,256.96 |
||
|
5
|
5
82122-S5B-A11 Pad & frame comp.RR. SEATBACK |
82122-S5B-A11 |
US $433.92 |
||
|
6
|
6
82127-SM4-J01 CollarRR. SEATBACK SETTING (A) (TS TECH) |
82127-SM4-J01 |
US $3.29 |
||
|
7
|
7
82127-S5A-003ZC
Guide
|
82127-S5A-003ZC |
— | ||
|
8
|
8
82131-S5A-901ZC CoverRR. SEAT CUSHION TRIM (LEATHER) *NH167L* |
82131-S5A-901ZC |
US $1,256.96 |
||
|
9
|
9
82132-S5A-N01 Pad & frame comp.RR. SEAT CUSHION |
82132-S5A-N01 |
US $433.92 |
||
|
10
|
10
82137-S5A-003 ClipRR. SEAT CUSHION |
82137-S5A-003 |
US $3.64 |
||
|
11
|
11
82140-S5A-901ZC Headrest assyRR. SEAT (LEATHER) *NH167L* |
82140-S5A-901ZC |
US $296.96 |
||
|
12
|
12
90128-SA7-000 Bolt-washer6X25 |
90128-SA7-000 |
US $2.45 |
||
|
13
|
13
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
14
|
14
93500-06018 ScrewPAN, 6X18 |
93500-06018 |
from US $0.44 |
||
| replacement | |||||
|
14
|
14
93500-060180A Screw, pan, 6x18 |
93500-060180A |
from US $0.44 |
||
