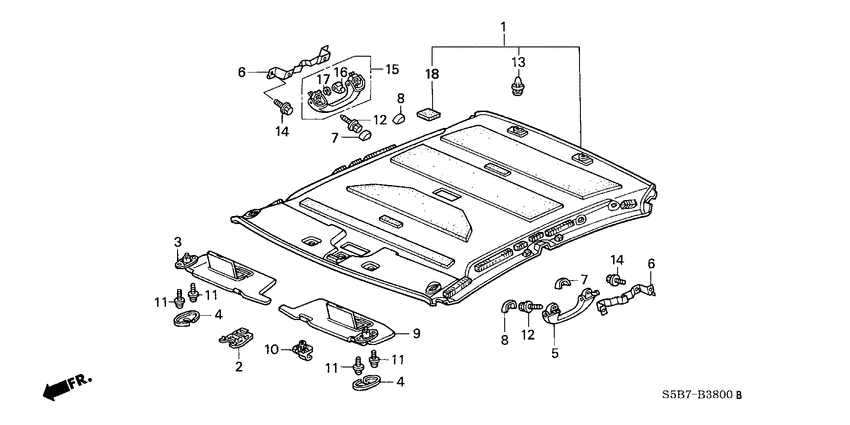

Roof lining Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KG
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83200-S5B-G01ZA Lining assy.ROOF *NH220L* |
83200-S5B-G01ZA |
US $369.92 |
||
|
2
|
2
83201-S5A-000ZA
Cap
|
83201-S5A-000ZA |
— | ||
|
3
|
3
83230-S5A-G32ZA
Sunvisor assy.
|
83230-S5A-G32ZA |
— | ||
|
4
|
4
83236-S5A-003ZA CapSUNVISOR *NH220L* |
83236-S5A-003ZA |
US $2.31 |
||
|
5
|
5
83240-S5A-J01ZA Rail assyGRAB *NH220L* |
83240-S5A-J01ZA |
US $21.12 |
||
|
6
|
6
83241-S5A-000
Bracket
|
83241-S5A-000 |
— | ||
|
7
|
7
83242-S5A-003ZA Cap aGRAB RAIL *NH220L* |
83242-S5A-003ZA |
US $2.94 |
||
|
8
|
8
83243-S5A-003ZA Cap bGRAB RAIL *NH220L* |
83243-S5A-003ZA |
US $2.94 |
||
|
9
|
9
83280-S5A-G32ZA
Sunvisor assy.
|
83280-S5A-G32ZA |
— | ||
|
9
|
9
83280-S5A-G42ZA
Sunvisor assy.
|
83280-S5A-G42ZA |
— | ||
|
10
|
10
88217-S04-003ZA HolderSUNVISOR *NH220L* |
88217-S04-003ZA |
from US $3.11 |
||
|
11
|
11
90136-S30-003 ScrewET, 5X18 |
90136-S30-003 |
US $1.19 |
||
|
11
|
11
90137-S30-003 ScrewET, 6X18 |
90137-S30-003 |
US $1.95 |
||
|
12
|
12
90137-S0A-003 ScrewET, 6X28 |
90137-S0A-003 |
US $1.47 |
||
|
12
|
12
90136-S7A-003 ScrewET, 5X20 |
90136-S7A-003 |
US $1.75 |
||
|
13
|
13
91560-S84-A01 CLIP, DOOR LINING (NATURAL) |
91560-S84-A01 |
US $2.44 |
||
|
14
|
14
93401-050-120-8 Bolt-washer5X12 |
93401-050-120-8 |
US $2.21 |
||
|
15
|
15
83240-S5A-J11ZA Rail assyGRAB (COAT HANGER) *NH220L* |
83240-S5A-J11ZA |
US $24.45 |
||
|
16
|
16
83244-S5A-J11ZA HangerCOAT *NH220L* |
83244-S5A-J11ZA |
US $5.88 |
||
|
17
|
17
94540-03018 E-ring3MM |
94540-03018 |
from US $0.67 |
||
|
18
|
18
91902-S3N-003 PlasterWIRE HARNESS (50X50) |
91902-S3N-003 |
US $1.19 |
