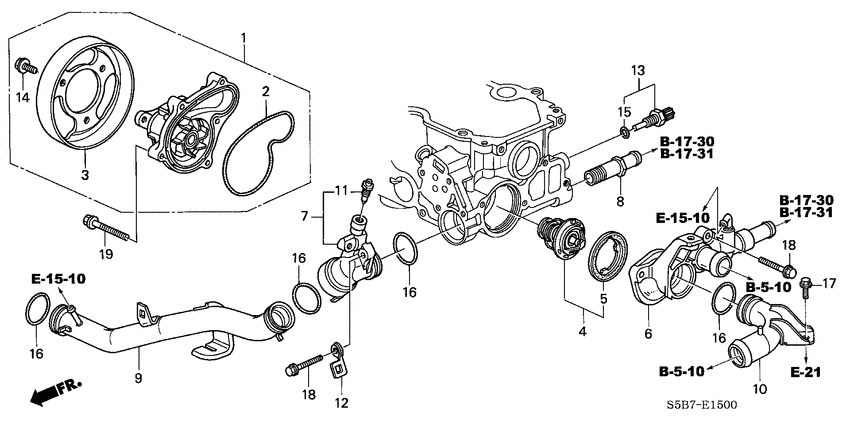

Water pump Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KG
- left-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19200-PZA-013 Pump assy.WATER |
19200-PZA-013 |
US $195.84 |
||
|
2
|
2
19222-PZA-003 PackingWATER PUMP |
19222-PZA-003 |
US $3.64 |
||
|
3
|
3
19224-PZA-003 PulleyWATER PUMP |
19224-PZA-003 |
US $25.22 |
||
|
4
|
4
19301-PZA-305
Thermostat assy
|
19301-PZA-305 |
— | ||
|
5
|
5
19305-PT0-000
Rubber
|
19305-PT0-000 |
— | ||
| replacement | |||||
|
5
|
5
19305-PLC-A00 RubberTHERMOSTAT MOUNTING |
19305-PLC-A00 |
from US $3.37 |
||
|
6
|
6
19315-PZA-000 Cover comp.WATER OUTLET |
19315-PZA-000 |
US $36.74 |
||
|
7
|
7
19316-PZA-000 Joint assy.WATER |
19316-PZA-000 |
US $38.66 |
||
|
8
|
8
19500-PNA-000 JointTUBE |
19500-PNA-000 |
US $5.60 |
||
|
9
|
9
19505-PZA-000 Pipe compCONNECTING |
19505-PZA-000 |
US $46.08 |
||
|
10
|
10
19510-PZA-000 Pipe compWATER |
19510-PZA-000 |
US $35.07 |
||
|
11
|
11
19516-PC1-000 BoltBREATHING WATER |
19516-PC1-000 |
from US $5.62 |
||
|
12
|
12
32746-PZA-000
Stay f
|
32746-PZA-000 |
— | ||
|
13
|
13
37870-PLC-004 Sensor assy, WATER TEMP (MATSUSHITA) |
37870-PLC-004 |
from US $40.79 |
||
|
14
|
14
90013-PCX-000 BoltSPECIAL, 6X12 |
90013-PCX-000 |
from US $1.26 |
||
|
15
|
15
91307-PLC-004 O-ring9.5X1.9 (MATSUSHITA) |
91307-PLC-004 |
from US $1.63 |
||
|
16
|
16
91314-634-000 O-ring |
91314-634-000 |
from US $2.86 |
||
|
17
|
17
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
18
|
18
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
19
|
19
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
