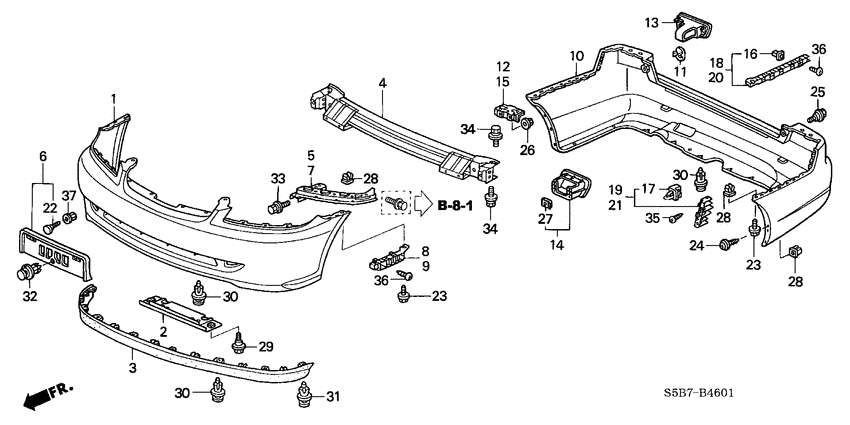

Bumpers ('04-) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71101-S5A-G20ZC
Face
|
71101-S5A-G20ZC |
— | ||
|
1
|
1
71101-S5A-G20ZE
Face
|
71101-S5A-G20ZE |
— | ||
|
1
|
1
71101-S5A-G20ZG
Face
|
71101-S5A-G20ZG |
— | ||
|
1
|
1
71101-S5A-G20ZB
Face
|
71101-S5A-G20ZB |
— | ||
|
1
|
1
71101-S5A-G20ZD
Face
|
71101-S5A-G20ZD |
— | ||
|
1
|
1
71101-S5A-G20ZF
Face
|
71101-S5A-G20ZF |
— | ||
|
1
|
1
71101-S5A-G20ZA
Face
|
71101-S5A-G20ZA |
— | ||
|
1
|
1
71101-S5A-G20ZH
Face
|
71101-S5A-G20ZH |
— | ||
|
3
|
3
71110-S5B-010ZA
Spoiler
|
71110-S5B-010ZA |
— | ||
|
4
|
4
71130-S5B-E01ZZ Beam compFR. BUMPER |
71130-S5B-E01ZZ |
US $208.64 |
||
|
5
|
5
71140-S5A-010 Beam compR. FR. BUMPER UPPER |
71140-S5A-010 |
from US $22.64 |
||
|
6
|
6
71145-S5A-G01 BaseFR. LICENSE PLATE |
71145-S5A-G01 |
US $47.36 |
||
|
7
|
7
71190-S5A-010 Beam compL. FR. BUMPER UPPER |
71190-S5A-010 |
US $24.32 |
||
|
8
|
8
71193-S5A-003 SpacerR. FR. BUMPER SIDE |
71193-S5A-003 |
from US $11.75 |
||
|
9
|
9
71198-S5A-003 SpacerL. FR. BUMPER SIDE |
71198-S5A-003 |
US $11.75 |
||
|
10
|
10
71501-S5A-E01ZK
Face
|
71501-S5A-E01ZK |
— | ||
|
10
|
10
71501-S5A-E01ZN
Face
|
71501-S5A-E01ZN |
— | ||
|
10
|
10
71501-S5A-E01ZB
Face
|
71501-S5A-E01ZB |
— | ||
|
10
|
10
71501-S5A-E01ZE
Face
|
71501-S5A-E01ZE |
— | ||
|
10
|
10
71501-S5A-E01ZM
Face
|
71501-S5A-E01ZM |
— | ||
|
10
|
10
71501-S5A-E01ZA
Face
|
71501-S5A-E01ZA |
— | ||
|
10
|
10
71501-S5A-E01ZP
Face
|
71501-S5A-E01ZP |
— | ||
|
10
|
10
71501-S5A-E01ZD
Face
|
71501-S5A-E01ZD |
— | ||
|
11
|
11
71503-S5A-000 CapRR. BUMPER |
71503-S5A-000 |
US $3.29 |
||
|
12
|
12
71505-S5A-J00 BracketR. RR. BUMPER SIDE |
71505-S5A-J00 |
US $6.58 |
||
|
13
|
13
71511-S5A-E01 GarnishR. RR. FOG OUTSIDE |
71511-S5A-E01 |
US $15.10 |
||
|
14
|
14
71512-S5A-E01 GarnishR. RR. FOG INSIDE |
71512-S5A-E01 |
US $15.10 |
||
|
15
|
15
71555-S5A-J00 BracketL. RR. BUMPER SIDE |
71555-S5A-J00 |
US $6.58 |
||
|
16
|
16
71591-S5A-000 Grommet & seal setA |
71591-S5A-000 |
US $2.31 |
||
|
17
|
17
71592-S5D-000
Grommet & seal set
|
71592-S5D-000 |
— | ||
|
18
|
18
71593-S5A-000 SpacerR. RR. BUMPER SIDE |
71593-S5A-000 |
US $14.22 |
||
|
19
|
19
71594-S5D-A00 SpacerR. RR. BUMPER UPPER |
71594-S5D-A00 |
US $27.32 |
||
|
20
|
20
71598-S5A-000 SpacerL. RR. BUMPER SIDE |
71598-S5A-000 |
US $14.22 |
||
|
21
|
21
71599-S5D-A00 SpacerL. RR. BUMPER UPPER |
71599-S5D-A00 |
US $12.01 |
||
|
22
|
22
90103-SP0-000 BoltCORNER CLIP |
90103-SP0-000 |
US $3.77 |
||
|
23
|
23
90109-SS0-000 ScrewTAPPING, 5X20 |
90109-SS0-000 |
US $2.07 |
||
|
24
|
24
90126-SR4-000 Screw-washer5X16 |
90126-SR4-000 |
from US $2.72 |
||
|
25
|
25
90149-SA0-000 BoltBUMPER |
90149-SA0-000 |
US $2.45 |
||
|
26
|
26
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
27
|
27
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
US $2.22 |
||
|
28
|
28
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
30
|
30
91503-SZ3-003 Clip A |
91503-SZ3-003 |
from US $1.94 |
||
|
31
|
31
91503-SZ5-003 ClipBUMPER FACE |
91503-SZ5-003 |
from US $1.75 |
||
|
32
|
32
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $1.98 |
||
|
33
|
33
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
34
|
34
93407-080-200-8 Bolt-washer8X20 |
93407-080-200-8 |
US $0.81 |
||
|
35
|
35
93903-24320 ScrewTAPPING, 4X12 |
93903-24320 |
from US $0.13 |
||
|
36
|
36
93903-25320 ScrewTAPPING, 5X16 |
93903-25320 |
from US $0.22 |
||
|
37
|
37
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
