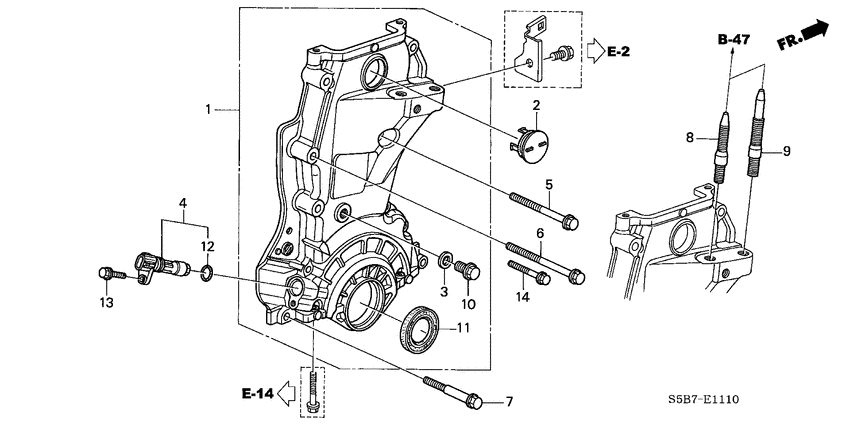

Chain case Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11410-PZA-000 Case assy.CHAIN |
11410-PZA-000 |
US $129.28 |
||
|
2
|
2
12513-P72-003 PlugCYLINDER HEAD |
12513-P72-003 |
from US $5.83 |
||
|
3
|
3
15302-PE0-300 WasherSEALING, 14MM |
15302-PE0-300 |
US $8.96 |
||
|
4
|
4
37500-PNB-003 Sensor assyCRANK |
37500-PNB-003 |
from US $61.95 |
||
|
5
|
5
90107-P4V-000 BoltFLANGE, 8X40 |
90107-P4V-000 |
US $1.68 |
||
|
6
|
6
90015-PF0-000 BoltFLANGE, 8X53 |
90015-PF0-000 |
US $2.59 |
||
|
7
|
7
90021-PWA-003 BoltSPECIAL, 8X41 |
90021-PWA-003 |
US $1.75 |
||
|
8
|
8
90041-PZA-000 BoltSTUD, 12X60 |
90041-PZA-000 |
US $3.57 |
||
|
9
|
9
90042-PZA-000 BoltSTUD, 12X80 |
90042-PZA-000 |
US $3.92 |
||
|
10
|
10
90081-PZA-000 BoltSEALING, 14MM |
90081-PZA-000 |
US $2.31 |
||
|
11
|
11
91212-PWA-003 Oil seal40X55X7 (NOK) |
91212-PWA-003 |
from US $7.25 |
||
|
12
|
12
91333-PNA-003 O-ring15X1.9 |
91333-PNA-003 |
from US $1.39 |
||
|
13
|
13
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
14
|
14
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
