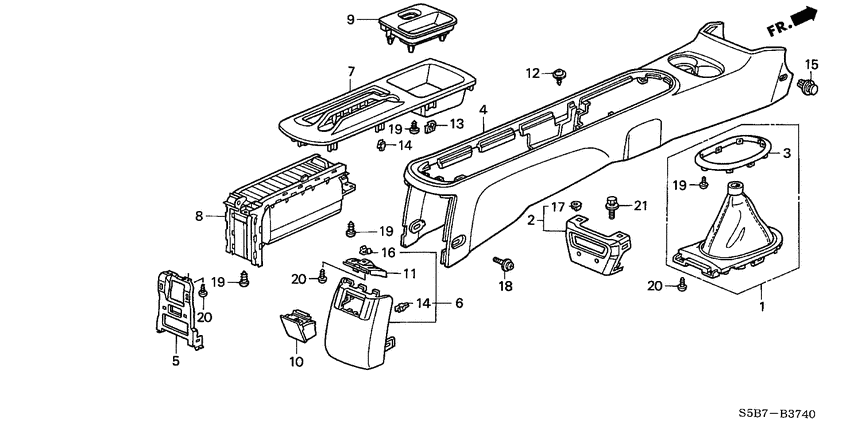

Console Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77295-S5B-E01ZA Garnish assyCENTER CONSOLE *NH167L* |
77295-S5B-E01ZA |
US $42.50 |
||
|
2
|
2
77296-S5A-000ZZ Bracket assyCENTER CONSOLE |
77296-S5A-000ZZ |
US $19.71 |
||
|
3
|
3
77298-S5N-C01
Garnish
|
77298-S5N-C01 |
— | ||
|
4
|
4
83401-S5A-003ZE
Console
|
83401-S5A-003ZE |
— | ||
|
5
|
5
83402-S5A-003ZZ BracketCENTER CONSOLE |
83402-S5A-003ZZ |
US $17.79 |
||
|
6
|
6
83403-S5A-003ZA
Cover assy.
|
83403-S5A-003ZA |
— | ||
|
7
|
7
83406-S5A-G01ZA PanelCENTER CONSOLE *NH167L* |
83406-S5A-G01ZA |
US $33.15 |
||
|
8
|
8
83407-S5A-A01ZA
Shutter comp.
|
83407-S5A-A01ZA |
— | ||
|
9
|
9
83408-S5A-G01ZA GarnishCENTER CONSOLE SWITCH *NH167L* |
83408-S5A-G01ZA |
US $10.36 |
||
|
10
|
10
88320-S04-000ZA
Ashtray assy.
|
88320-S04-000ZA |
— | ||
|
11
|
11
88324-SB3-950 CoverRR. ASHTRAY |
88324-SB3-950 |
US $4.06 |
||
|
12
|
12
90137-SH3-000 ScrewTAPPING, 4X16 |
90137-SH3-000 |
from US $1.70 |
||
|
13
|
13
90665-S04-003 ClipSNAP FITTING |
90665-S04-003 |
US $1.61 |
||
|
14
|
14
90666-S84-A01 ClipSNAP FITTING |
90666-S84-A01 |
from US $0.88 |
||
|
15
|
15
91550-S50-000ZL ClipTAILGATE *NH167L* |
91550-S50-000ZL |
from US $1.47 |
||
|
16
|
16
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
17
|
17
91641-SM4-003 GrommetSCREW, 4MM |
91641-SM4-003 |
US $1.95 |
||
|
18
|
18
93894-050-160-7 Screw-washer5X16 |
93894-050-160-7 |
from US $0.44 |
||
|
19
|
19
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
20
|
20
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
21
|
21
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
