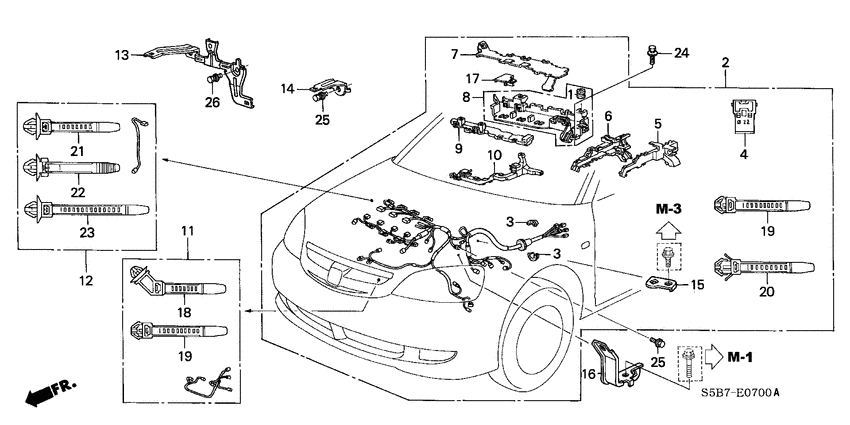

Engine wire harness (RH) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17212-PE2-000 Rubber aAIR CLEANER CASE MOUNTING |
17212-PE2-000 |
US $2.38 |
||
|
2
|
2
32110-PZA-E00 HarnessENGINE WIRE |
32110-PZA-E00 |
US $744.96 |
||
|
3
|
3
32113-PLD-003 CollarHARNESS GROMMET |
32113-PLD-003 |
US $2.31 |
||
|
4
|
4
32119-P2E-A01 HolderCORRUGATED (DARK BLUE) (22MM) |
32119-P2E-A01 |
US $2.31 |
||
|
5
|
5
32127-PZA-000 Holder aENGINE HARNESS UPPER |
32127-PZA-000 |
US $11.20 |
||
|
6
|
6
32128-PZA-000 Holder aENGINE HARNESS LOWER |
32128-PZA-000 |
US $12.46 |
||
|
7
|
7
32129-PZA-000 Holder bENGINE HARNESS UPPER |
32129-PZA-000 |
US $13.58 |
||
|
8
|
8
32130-PZA-000 Holder assy. bENGINE HARNESS LOWER |
32130-PZA-000 |
US $14.34 |
||
|
9
|
9
32131-PZA-000 Holder cENGINE HARNESS |
32131-PZA-000 |
US $10.78 |
||
|
10
|
10
32132-PZA-000 Holder dENGINE HARNESS |
32132-PZA-000 |
US $10.78 |
||
|
11
|
11
32140-PZA-000 HarnessINTAKE MANIFOLD |
32140-PZA-000 |
US $64.64 |
||
|
12
|
12
32150-PZA-000
Sub harness
|
32150-PZA-000 |
— | ||
|
13
|
13
32743-PZA-E00
Stay comp. c
|
32743-PZA-E00 |
— | ||
|
14
|
14
32744-PZA-000
Stay e
|
32744-PZA-000 |
— | ||
|
15
|
15
32745-PHM-000
Stay f
|
32745-PHM-000 |
— | ||
|
16
|
16
32747-PHM-000
Stay h
|
32747-PHM-000 |
— | ||
|
17
|
17
32753-PZA-000
Stay
|
32753-PZA-000 |
— | ||
|
18
|
18
91506-P0A-A01 ClipALTERNATOR CORD |
91506-P0A-A01 |
US $2.87 |
||
|
19
|
19
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
20
|
20
91507-P01-003 Clip bHARNESS BAND (DARK BROWN) (129.4MM) |
91507-P01-003 |
from US $2.25 |
||
|
21
|
21
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
22
|
22
91558-PFD-003 ClipHARNESS BAND (GRAY) (135MM) (7MM HOLE) |
91558-PFD-003 |
US $1.61 |
||
|
23
|
23
91558-P8C-A01 ClipHARNESS BAND (VIOLET) (150MM) |
91558-P8C-A01 |
US $1.89 |
||
|
24
|
24
93404-060-250-8 Bolt-washer6X25 |
93404-060-250-8 |
from US $0.62 |
||
|
25
|
25
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
26
|
26
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
