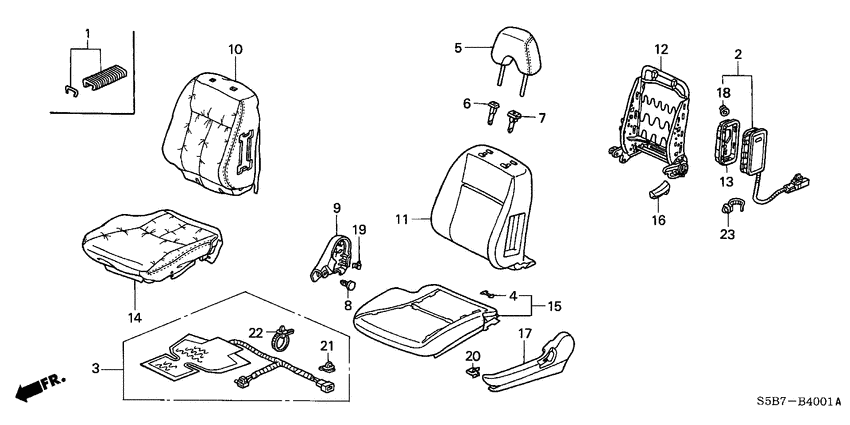

Front seat (RH; PASSENGER SIDE) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-R00 C clip setTRIM FASTENER (100 PIECES) |
04810-SB3-R00 |
US $13.30 |
||
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
06788-S5S-G80ZA
Module kit
|
06788-S5S-G80ZA |
— | ||
|
3
|
3
81134-S5A-E21 Heater comp.FR. CUSHION |
81134-S5A-E21 |
US $264.96 |
||
|
4
|
4
81138-S5A-G21 ClipH |
81138-S5A-G21 |
US $0.91 |
||
|
5
|
5
81140-S5A-J22ZA Headrest assyFR. SEAT *NH167L* |
81140-S5A-J22ZA |
US $134.40 |
||
|
6
|
6
81143-SM4-J01ZA Guide compHEADREST FREE *NH167L* |
81143-SM4-J01ZA |
US $6.02 |
||
|
7
|
7
81144-S0A-J01ZF Guide compHEADREST LOCK *NH167L* |
81144-S0A-J01ZF |
US $7.42 |
||
|
8
|
8
81189-S10-J11ZK Clip *nh167l* |
81189-S10-J11ZK |
US $1.82 |
||
|
9
|
9
81515-S5A-J01ZC
Cover
|
81515-S5A-J01ZC |
— | ||
|
10
|
10
81521-S5A-E32ZA CoverL. FR. SEATBACK TRIM *NH167L* |
81521-S5A-E32ZA |
US $229.12 |
||
|
11
|
11
81522-S5A-A31 Pad assyL. FR. SEATBACK |
81522-S5A-A31 |
US $138.24 |
||
|
12
|
12
81526-S5A-N31
Frame comp
|
81526-S5A-N31 |
— | ||
|
13
|
13
81528-S5A-J01 HolderL. MODULE |
81528-S5A-J01 |
US $17.79 |
||
|
14
|
14
81531-S5B-E11ZA
Cover
|
81531-S5B-E11ZA |
— | ||
|
15
|
15
81532-S5A-N03 Pad assyL. FR. SEAT CUSHION |
81532-S5A-N03 |
US $118.40 |
||
|
16
|
16
81631-S5A-013ZC KnobL. RECLINING *NH167L* |
81631-S5A-013ZC |
US $4.62 |
||
|
17
|
17
81638-S5A-J01ZC CoverL. RECLINING *NH167L* |
81638-S5A-J01ZC |
US $13.72 |
||
|
18
|
18
90321-SP0-A80 Nut-washer6MM |
90321-SP0-A80 |
from US $1.26 |
||
|
19
|
19
90610-SR3-003 ClipGARNISH (KATO) |
90610-SR3-003 |
US $1.72 |
||
|
20
|
20
90610-S10-003 ClipGARNISH |
90610-S10-003 |
US $1.61 |
||
|
21
|
21
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
22
|
22
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
23
|
23
90656-PB1-003 BandOIL HOSE |
90656-PB1-003 |
US $2.10 |
