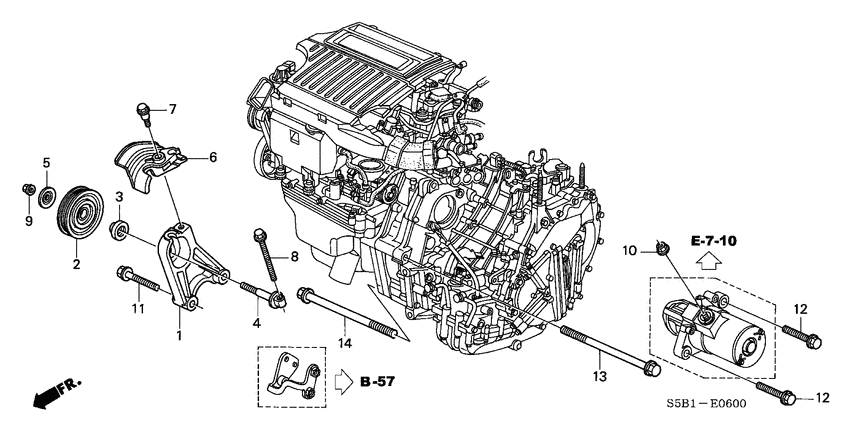

Idle pulley Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38926-PZA-000 BracketIDLE PULLEY |
38926-PZA-000 |
US $21.25 |
||
|
2
|
2
38942-PZA-003 Pulley compIDLE |
38942-PZA-003 |
US $39.81 |
||
|
3
|
3
38944-PHM-000 CollarIDLE PULLEY |
38944-PHM-000 |
US $5.60 |
||
|
4
|
4
38946-PHM-000 BoltIDLE PULLEY |
38946-PHM-000 |
US $5.48 |
||
|
5
|
5
38947-PZA-000 CoverBEARING |
38947-PZA-000 |
US $3.71 |
||
|
6
|
6
38955-PZA-000 CoverIDLE PULLEY |
38955-PZA-000 |
US $8.82 |
||
|
7
|
7
90007-679-000 Bolt aTIMING BELT COVER |
90007-679-000 |
from US $2.22 |
||
|
8
|
8
90025-PZA-000 BoltFLANGE, 8X50 |
90025-PZA-000 |
US $2.31 |
||
|
9
|
9
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
10
|
10
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
11
|
11
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
|
12
|
12
95701-100-400-8 BoltFLANGE, 10X40 |
95701-100-400-8 |
from US $0.81 |
||
|
13
|
13
95701-121-250-8 BoltFLANGE, 12X125 |
95701-121-250-8 |
US $2.07 |
||
|
14
|
14
95701-121-300-8 BoltFLANGE, 12X130 |
95701-121-300-8 |
US $2.07 |
