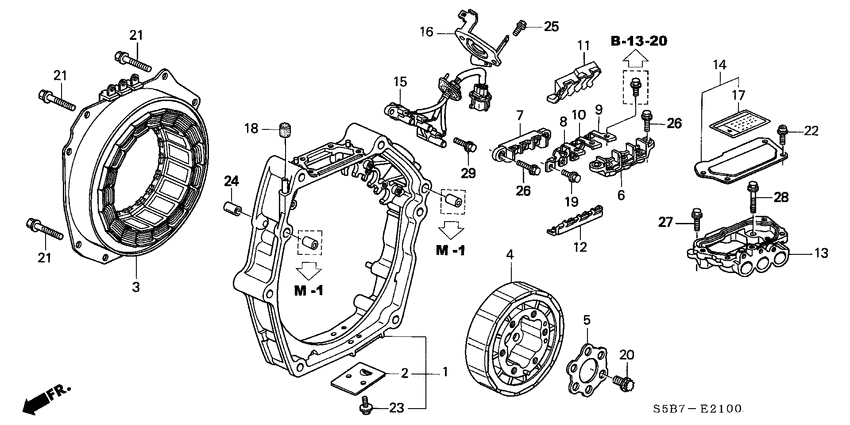

Ima motor Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A220-PZA-000 Housing compMOTOR |
1A220-PZA-000 |
US $267.52 |
||
|
2
|
2
1A226-PHM-300 CoverDRAIN |
1A226-PHM-300 |
US $5.04 |
||
|
3
|
3
1A240-PZA-305
Stator assy.
|
1A240-PZA-305 |
— | ||
|
4
|
4
1A300-PZA-000
Rotor assy.
|
1A300-PZA-000 |
— | ||
|
5
|
5
1A335-PZA-000
Spacer
|
1A335-PZA-000 |
— | ||
|
6
|
6
1A410-PZA-010 Base comp.TERMINAL UPPER |
1A410-PZA-010 |
US $27.14 |
||
|
7
|
7
1A420-PZA-000 Base comp.TERMINAL LOWER |
1A420-PZA-000 |
US $27.14 |
||
|
8
|
8
1A461-PZA-000 Busbar uMOTOR |
1A461-PZA-000 |
US $7.42 |
||
|
9
|
9
1A462-PZA-000 Busbar vMOTOR |
1A462-PZA-000 |
US $7.42 |
||
|
10
|
10
1A463-PZA-000 Busbar wMOTOR |
1A463-PZA-000 |
US $7.42 |
||
|
11
|
11
1A465-PZA-000 CoverBUSBAR UPPER |
1A465-PZA-000 |
US $5.60 |
||
|
12
|
12
1A466-PZA-000 CoverBUSBAR LOWER |
1A466-PZA-000 |
US $5.60 |
||
|
13
|
13
1A510-PZA-000 CaseTERMINAL |
1A510-PZA-000 |
US $71.68 |
||
|
14
|
14
1A511-PZA-A00 Cover comp.TERMINAL |
1A511-PZA-A00 |
US $28.29 |
||
|
15
|
15
1A810-PZA-000 Sensor compCOMMUTATION |
1A810-PZA-000 |
US $582.08 |
||
|
16
|
16
1A851-PZA-000 CoverCOMMUTATION SENSOR GROMMET 00000000 - 3500696 |
1A851-PZA-000 |
US $13.02 |
||
|
16
|
16
1A851-PZA-010 CoverCOMMUTATION SENSOR GROMMET 3500697 - |
1A851-PZA-010 |
US $11.90 |
||
|
17
|
17
1K810-PZA-A00 LabelCAUTION |
1K810-PZA-A00 |
US $3.43 |
||
|
18
|
18
21396-PX5-000 CapBREATHER |
21396-PX5-000 |
US $3.18 |
||
|
19
|
19
90007-PZA-000 BoltFLANGE, 6X12(FOR BUSBAR) 3500697 - |
90007-PZA-000 |
US $1.19 |
||
|
19
|
19
90007-P8X-000
Bolt
00000000 - 3500696 |
90007-P8X-000 |
— | ||
|
20
|
20
90011-PM0-000 Bolt12MM |
90011-PM0-000 |
from US $3.03 |
||
|
21
|
21
90045-PHM-000 BoltFLANGE, 8X35 |
90045-PHM-000 |
US $2.03 |
||
|
22
|
22
90062-PZA-000 Bolt-washerTORX, 6X16 4S200591 - |
90062-PZA-000 |
US $1.75 |
||
|
22
|
22
90062-P8X-000 Bolt-washerTORX, 6X16 00000000 - 4S200590 |
90062-P8X-000 |
US $1.68 |
||
|
23
|
23
93404-060-160-5 Bolt-washer6X16 |
93404-060-160-5 |
US $0.52 |
||
|
24
|
24
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
25
|
25
90007-PZA-000 BoltFLANGE, 6X12(FOR BUSBAR) 3501573 - |
90007-PZA-000 |
US $1.19 |
||
|
25
|
25
95701-060-120-8 BoltFLANGE, 6X12 00000000 - 3501572 |
95701-060-120-8 |
from US $0.52 |
||
|
26
|
26
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.65 |
||
|
27
|
27
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
28
|
28
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
29
|
29
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
