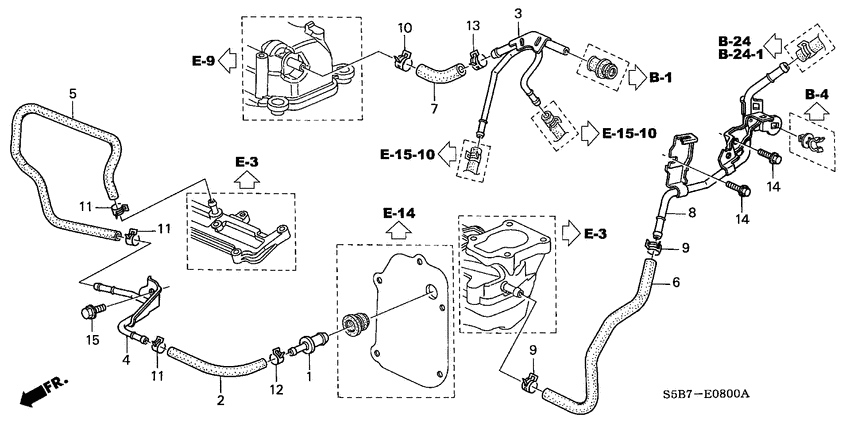

Install pipe Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17130-P07-G01 Valve assy.PCV |
17130-P07-G01 |
US $28.40 |
||
|
2
|
2
17131-PZA-000
Tube a
|
17131-PZA-000 |
— | ||
|
3
|
3
17135-PZA-000 Pipe compBREATHER |
17135-PZA-000 |
US $16.90 |
||
|
4
|
4
17136-PZA-000 Pipe compPCV |
17136-PZA-000 |
US $13.58 |
||
|
5
|
5
17137-PZA-L00
Tube b
|
17137-PZA-L00 |
— | ||
|
6
|
6
17140-PZA-000 HosePOWER BRAKE |
17140-PZA-000 |
US $8.82 |
||
|
7
|
7
17153-PZA-000
Tube
|
17153-PZA-000 |
— | ||
|
8
|
8
17400-PZA-000 Pipe assy. aINSTALL |
17400-PZA-000 |
US $24.58 |
||
|
9
|
9
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.74 |
||
|
10
|
10
91405-PH7-003
Clamp
|
91405-PH7-003 |
— | ||
|
11
|
11
95002-412-000-4 ClampTUBE (D12) |
95002-412-000-4 |
from US $0.74 |
||
|
12
|
12
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
13
|
13
95002-413-000-4 ClampTUBE(D13) |
95002-413-000-4 |
from US $1.04 |
||
|
14
|
14
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
15
|
15
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
