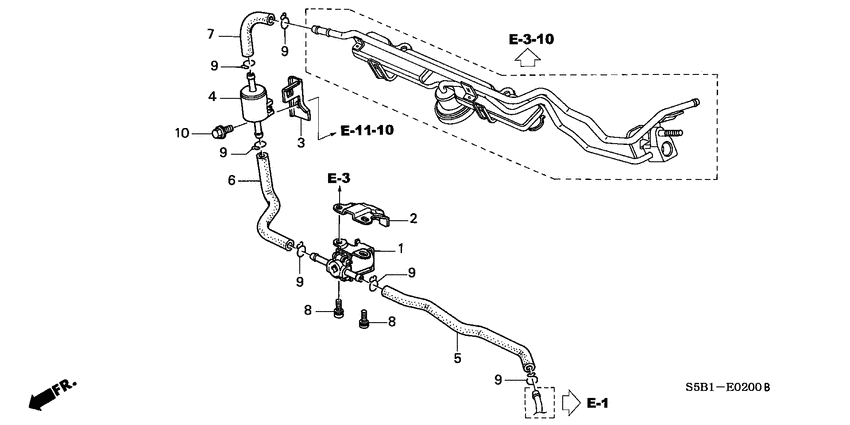

Purge control Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36162-PZA-003 ValvePURGE CONTROL SOLENOID |
36162-PZA-003 |
US $216.94 |
||
|
2
|
2
36164-PZA-000
Stay
|
36164-PZA-000 |
— | ||
|
3
|
3
36165-PZA-000
Stay
|
36165-PZA-000 |
— | ||
|
4
|
4
36166-PAA-A01 JointPURGE |
36166-PAA-A01 |
US $7.56 |
||
|
5
|
5
36167-PZA-000
Tube a
|
36167-PZA-000 |
— | ||
|
6
|
6
36168-PZA-000
Tube b
|
36168-PZA-000 |
— | ||
|
7
|
7
36169-PZA-000
Tube c
|
36169-PZA-000 |
— | ||
|
8
|
8
93892-050-140-8 Screw-washer5X14 |
93892-050-140-8 |
from US $0.47 |
||
|
9
|
9
95002-02124 ClipTUBE(B12) |
95002-02124 |
from US $0.52 |
||
| replacement | |||||
|
9
|
9
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
10
|
10
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
