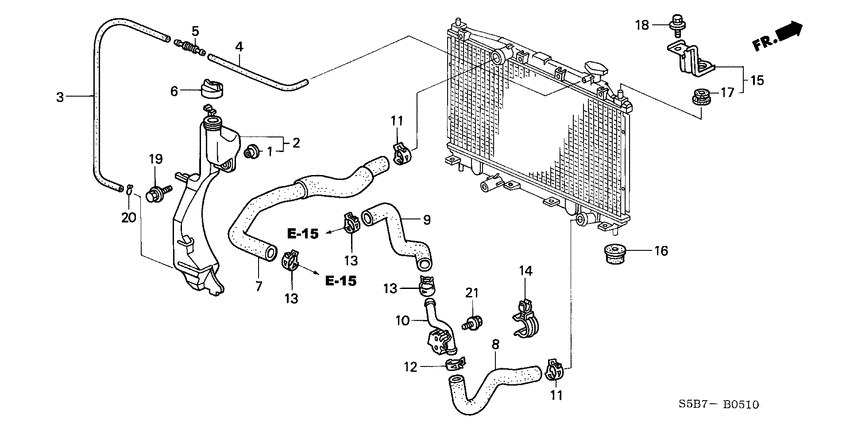

Radiator hose/reserve tan k Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17163-PH7-300 CollarMANIFOLD COVER MOUNTING |
17163-PH7-300 |
US $2.52 |
||
|
2
|
2
19101-PZA-000
Tank comp.
|
19101-PZA-000 |
— | ||
|
3
|
3
19103-PZA-000 Hose aRESERVE TANK |
19103-PZA-000 |
US $7 |
||
|
4
|
4
19104-PZA-000 Hose bRESERVE TANK |
19104-PZA-000 |
US $9.66 |
||
|
5
|
5
19105-PLC-000
Joint
|
19105-PLC-000 |
— | ||
|
6
|
6
19109-PH1-620 CapFILLER |
19109-PH1-620 |
from US $3.83 |
||
|
7
|
7
19501-PZA-000 HoseWATER UPPER |
19501-PZA-000 |
US $36.74 |
||
|
8
|
8
19502-PZA-000 HoseWATER LOWER (A) |
19502-PZA-000 |
US $17.66 |
||
|
9
|
9
19504-PZA-000 HoseWATER LOWER (B) |
19504-PZA-000 |
US $17.66 |
||
|
10
|
10
19508-PZA-000 Pipe compWATER LOWER |
19508-PZA-000 |
US $33.41 |
||
|
11
|
11
19511-PZA-004 ClipWATER HOSE (KEIHIN) |
19511-PZA-004 |
US $3.50 |
||
|
12
|
12
19511-P08-004
Clip
|
19511-P08-004 |
— | ||
| replacement | |||||
|
12
|
12
19511-PA6-003 ClipWATER HOSE(CHUO SPRING) |
19511-PA6-003 |
from US $3.70 |
||
|
12
|
12
19511-P08-003
Clip
|
19511-P08-003 |
— | ||
| replacement | |||||
|
12
|
12
19511-PA6-003 ClipWATER HOSE(CHUO SPRING) |
19511-PA6-003 |
from US $3.70 |
||
|
13
|
13
19511-P08-004
Clip
|
19511-P08-004 |
— | ||
| replacement | |||||
|
13
|
13
19511-PA6-003 ClipWATER HOSE(CHUO SPRING) |
19511-PA6-003 |
from US $3.70 |
||
|
14
|
14
24365-PM0-901 ClampTHROTTLE WIRE |
24365-PM0-901 |
US $3.78 |
||
|
15
|
15
74171-S5A-000 BracketRADIATOR MOUNT UPPER |
74171-S5A-000 |
US $8.82 |
||
|
16
|
16
74172-SS0-000 CushionRADIATOR MOUNTING LOWER |
74172-SS0-000 |
from US $6.30 |
||
|
17
|
17
74173-SJ4-000 CushionRADIATOR MOUNTING UPPER |
74173-SJ4-000 |
from US $3.26 |
||
|
18
|
18
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
19
|
19
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
20
|
20
95002-70000 ClipTUBE (C11) |
95002-70000 |
from US $0.44 |
||
|
21
|
21
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
