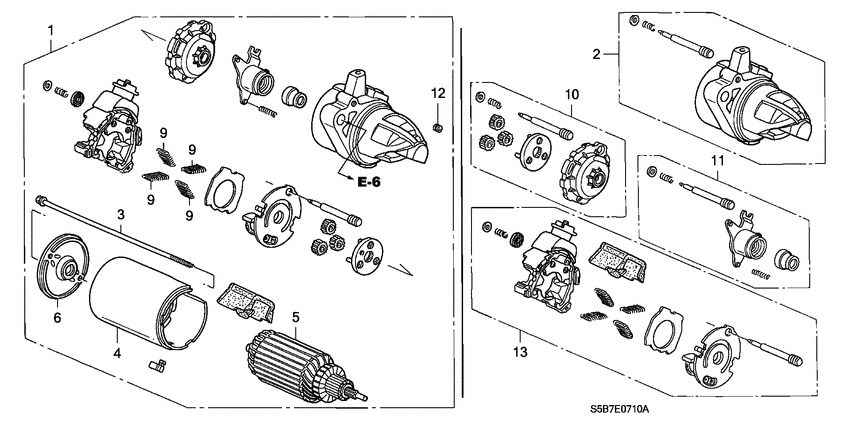

Starter motor (MITSUBA) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31200-PZA-004 Motor assy.STARTER (SM-61208) (MITSUBA) |
31200-PZA-004 |
US $834.56 |
||
|
2
|
2
31201-PHM-A01 Cover setGEAR |
31201-PHM-A01 |
US $267.52 |
||
|
3
|
3
31202-PHM-A01 BoltSETTING |
31202-PHM-A01 |
US $2.80 |
||
|
4
|
4
31206-PHM-004
Yoke assy.
|
31206-PHM-004 |
— | ||
|
5
|
5
31207-PHM-004 Armature assy. |
31207-PHM-004 |
US $109.44 |
||
|
6
|
6
31209-RAA-A51 Bracket unitRR. |
31209-RAA-A51 |
US $7 |
||
|
9
|
9
31213-PHM-004
Spring
|
31213-PHM-004 |
— | ||
|
10
|
10
31220-PHM-A01 Gear setREDUCTION |
31220-PHM-A01 |
US $253.44 |
||
|
11
|
11
31230-PSA-J51
Plunger set
|
31230-PSA-J51 |
— | ||
|
12
|
12
31252-PD2-006 RubberBUSH (MITSUBA) |
31252-PD2-006 |
from US $1.96 |
||
|
13
|
13
04312-PZA-305 KitBRUSH HOLDER |
04312-PZA-305 |
US $58.88 |
