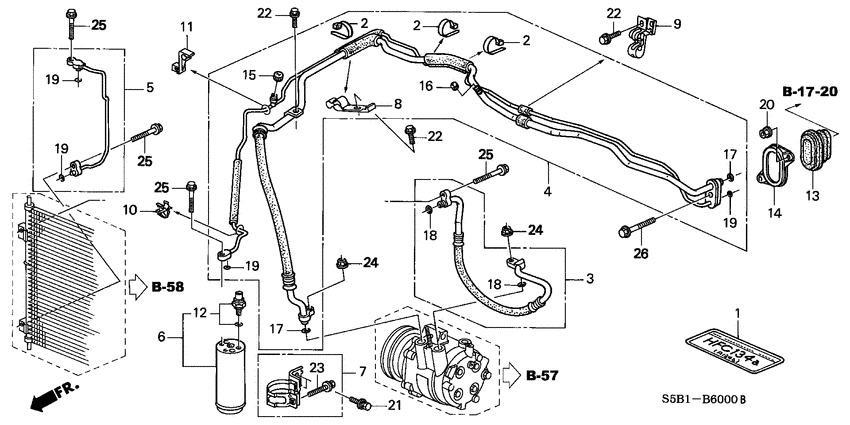

Air conditioner (HOSES/PIPES; RH) Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80050-SP0-000 LabelAIR CONDITIONER CAUTION (HFC134A) |
80050-SP0-000 |
from US $1.35 |
||
|
2
|
2
80285-S5A-A00 Holder |
80285-S5A-A00 |
US $2.31 |
||
|
3
|
3
80315-S5B-003 Hose comp.DISCHARGE |
80315-S5B-003 |
US $85.76 |
||
|
4
|
4
80325-S5B-003
Pipe assy.
|
80325-S5B-003 |
— | ||
|
5
|
5
80331-S5B-003 PipeCONDENSER |
80331-S5B-003 |
US $64.64 |
||
|
6
|
6
80351-S0D-003 Receiver comp |
80351-S0D-003 |
US $87.04 |
||
|
7
|
7
80352-S5B-000 BracketLIQUID TANK |
80352-S5B-000 |
US $12.60 |
||
|
8
|
8
80362-S5B-000 ClampAIR CONDITIONER PIPE |
80362-S5B-000 |
US $3.57 |
||
|
9
|
9
80367-SR3-A00 Clamp bSUCTION PIPE |
80367-SR3-A00 |
US $13.35 |
||
|
10
|
10
80387-SM4-A01 ClipRECEIVER PIPE |
80387-SM4-A01 |
US $2.37 |
||
|
11
|
11
80387-S5B-003 ClipRECEIVER PIPE |
80387-S5B-003 |
US $1.68 |
||
|
12
|
12
80440-SW5-A01
Switch
|
80440-SW5-A01 |
— | ||
|
12
|
12
80440-SW5-003
Switch
|
80440-SW5-003 |
— | ||
|
13
|
13
80464-S5A-000
Grommet
|
80464-S5A-000 |
— | ||
|
14
|
14
80465-S5A-000 CoverAIR CONDITIONER PIPE |
80465-S5A-000 |
US $4.90 |
||
|
15
|
15
80865-SW5-003 Cap comp.VALVE (H) |
80865-SW5-003 |
US $3.36 |
||
|
16
|
16
80866-SW5-003 Cap comp.VALVE(L) |
80866-SW5-003 |
US $2.87 |
||
|
17
|
17
80871-ST7-000 O-ring5/8" |
80871-ST7-000 |
from US $2.69 |
||
|
18
|
18
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
19
|
19
80873-ST7-000 O-ring8MM |
80873-ST7-000 |
from US $2.74 |
||
|
20
|
20
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
21
|
21
93403-060-160-4 Bolt-washer6X16 |
93403-060-160-4 |
US $0.59 |
||
|
22
|
22
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
23
|
23
93403-060-250-4 Bolt-washer6X25 |
93403-060-250-4 |
US $0.74 |
||
|
24
|
24
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
25
|
25
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
26
|
26
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
