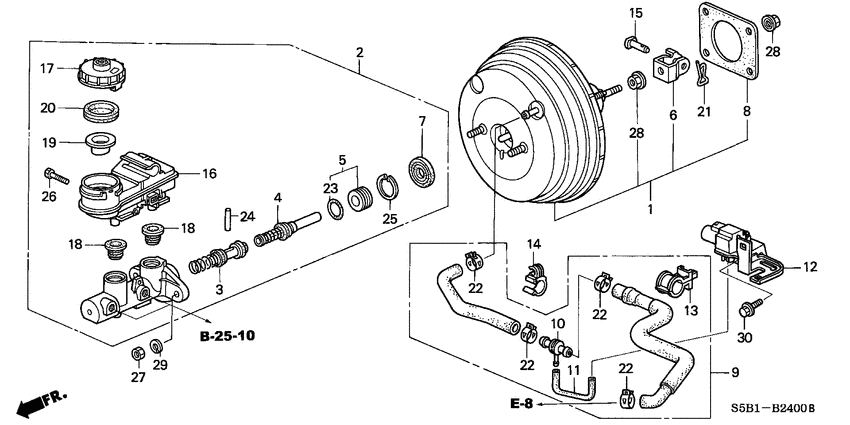

Brake master cylinder/ master power (RH) Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01469-S5B-000 Power setMASTER (7"+8") |
01469-S5B-000 |
US $610.56 |
||
|
2
|
2
46100-S5B-003 Cylinder assy.MASTER |
46100-S5B-003 |
US $293.12 |
||
|
3
|
3
46120-S04-J71 Piston assy.PRIMARY |
46120-S04-J71 |
from US $41.48 |
||
|
4
|
4
46122-S5A-K01 Piston assy.SECONDARY |
46122-S5A-K01 |
US $28.42 |
||
|
5
|
5
46135-S5A-J41 Guide assyPISTON |
46135-S5A-J41 |
US $13.72 |
||
|
6
|
6
46151-SB2-003 YokePUSH ROD (NISSIN) |
46151-SB2-003 |
US $18.92 |
||
|
7
|
7
46185-SE0-003 SealROD |
46185-SE0-003 |
from US $3.33 |
||
|
8
|
8
46191-S2K-000 PackingMASTER POWER |
46191-S2K-000 |
US $2.31 |
||
|
9
|
9
46402-S5B-003
Tube assy
|
46402-S5B-003 |
— | ||
|
10
|
10
46403-S1B-E00 JointTHREE WAY |
46403-S1B-E00 |
US $6.16 |
||
|
11
|
11
46403-S5B-000
Tube
|
46403-S5B-000 |
— | ||
|
12
|
12
46407-S5B-020 Sensor assyMAP |
46407-S5B-020 |
US $193.28 |
||
|
13
|
13
46407-S84-A01 ClampTUBE |
46407-S84-A01 |
US $2.59 |
||
|
14
|
14
46409-S5A-J01 ClampMASTER POWER TUBE |
46409-S5A-J01 |
US $3.99 |
||
|
15
|
15
46512-S70-000 PinPEDAL |
46512-S70-000 |
from US $2.31 |
||
|
16
|
16
46661-S5A-J40
Reservoir set
|
46661-S5A-J40 |
— | ||
|
17
|
17
46662-S9A-003 Cap comp.RESERVE TANK |
46662-S9A-003 |
from US $14.21 |
||
|
18
|
18
46665-S04-J01 Grommet |
46665-S04-J01 |
from US $5.33 |
||
|
19
|
19
46666-S2K-003 FilterBRAKE RESERVOIR |
46666-S2K-003 |
from US $5.33 |
||
|
20
|
20
46669-S5A-003 Diaphragm |
46669-S5A-003 |
from US $8.88 |
||
|
21
|
21
46911-S70-003 Pin, LOCK(8MM) |
46911-S70-003 |
from US $1.85 |
||
|
22
|
22
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.74 |
||
|
23
|
23
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
|
24
|
24
57515-S30-003 PinSTOP |
57515-S30-003 |
US $2.31 |
||
|
25
|
25
57562-SF1-003 Circlip |
57562-SF1-003 |
US $2.17 |
||
|
26
|
26
92301-05025-0H BoltRECESSED, 5X25 |
92301-05025-0H |
from US $0.52 |
||
|
27
|
27
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
27
|
27
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
28
|
28
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
29
|
29
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
30
|
30
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
