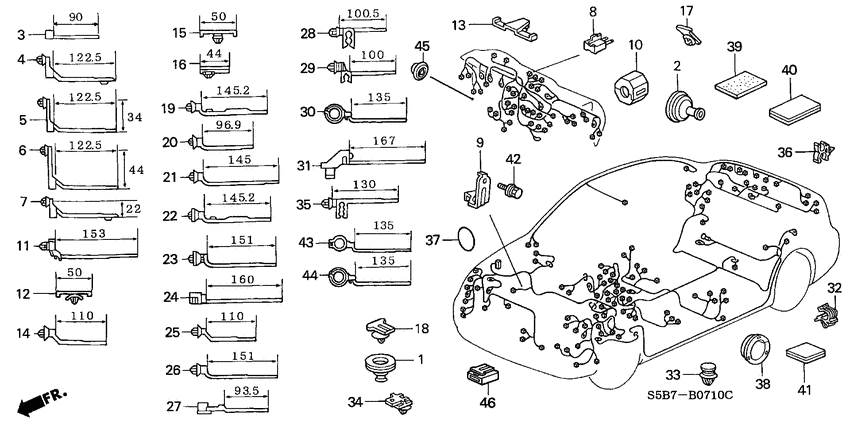

Harness band/bracket Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32103-679-000 GrommetWIRE HARNESS(BLACK) |
32103-679-000 |
US $5.74 |
||
|
2
|
2
32111-680-300 GrommetRR. HARNESS (BLACK) |
32111-680-300 |
from US $7.42 |
||
|
3
|
3
32112-S2K-003 BandCABLE (90MM) |
32112-S2K-003 |
US $1.61 |
||
|
4
|
4
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
5
|
5
32132-S6A-003 BandWIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
32132-S6A-003 |
US $2.73 |
||
|
6
|
6
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $2.73 |
||
|
7
|
7
32134-SM4-003 BandHARNESS OFFSET (10) (BROWN) (122.5MM) |
32134-SM4-003 |
from US $3.03 |
||
|
8
|
8
32146-S84-003 ConnectorDIODE (2P)(3A) |
32146-S84-003 |
from US $7.70 |
||
|
9
|
9
32205-S5B-000 BracketR. ENGINE ROOM HARNESS |
32205-S5B-000 |
US $5.60 |
||
|
10
|
10
38617-S5A-J01 Filter compNOISE |
38617-S5A-J01 |
US $7.56 |
||
|
11
|
11
77963-SV4-A01 ClipSRS HARNESS (BLUE) (153MM) |
77963-SV4-A01 |
US $2.10 |
||
|
12
|
12
90677-692-003 ClipWIRE HARNESS (HARNESS TAPING) |
90677-692-003 |
US $2.31 |
||
|
13
|
13
91476-SD4-003 ClipOFFSET (21) (BROWN) (60MM) |
91476-SD4-003 |
US $1.89 |
||
|
14
|
14
91507-SL9-003 ClipWIRE HARNESS (GREEN) (110MM) (7MM HOLE) |
91507-SL9-003 |
from US $1.68 |
||
|
15
|
15
91510-SA5-003 ClipOFFSET(10)(BROWN)(50MM) |
91510-SA5-003 |
US $2.38 |
||
|
16
|
16
91531-S04-003 ClipWIRE HARNESS(NATURAL) (44MM) |
91531-S04-003 |
US $1.33 |
||
|
17
|
17
91531-S84-003 ClipWIRE HARNESS(NATURAL) (44MM)(WITH SEAL) |
91531-S84-003 |
US $2.17 |
||
|
18
|
18
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
19
|
19
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
20
|
20
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
21
|
21
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
||
|
22
|
22
91545-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
91545-SV4-003 |
US $3.11 |
||
|
23
|
23
91545-S2A-003 ClipHARNESS BAND (BROWN) (151MM) (WITH SEAL) |
91545-S2A-003 |
US $1.89 |
||
|
24
|
24
91547-SH3-003 ClipBAND(NATURAL)(160MM) |
91547-SH3-003 |
US $2.52 |
||
|
25
|
25
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
26
|
26
91551-SW5-003 ClipHARNESS BAND (BROWN) (151MM) |
91551-SW5-003 |
from US $1.61 |
||
|
27
|
27
91552-SS0-003 ClipWIRE HARNESS (M5) (BROWN) (93.5MM) |
91552-SS0-003 |
US $1.68 |
||
|
28
|
28
91554-SH3-003 BandWIRE HARNESS (NATURAL) (100.5MM) |
91554-SH3-003 |
US $2.52 |
||
|
29
|
29
91556-SM4-003 ClipBAND (BLACK) (100MM) |
91556-SM4-003 |
US $2.31 |
||
|
30
|
30
91559-SM4-003 ClipPOWER STEERING TUBE (135MM) |
91559-SM4-003 |
US $1.89 |
||
|
31
|
31
91559-S47-003 ClipHARNESS BAND(NATURAL) (167MM) |
91559-S47-003 |
US $2.03 |
||
|
32
|
32
91559-S5B-003 ClipCABLE |
91559-S5B-003 |
US $2.03 |
||
|
33
|
33
91560-S3C-003 ClipRR. SIDE BOARD |
91560-S3C-003 |
US $1.33 |
||
|
34
|
34
91565-S0X-003 ClipCOUPLER (DARK GREEN) |
91565-S0X-003 |
from US $1.61 |
||
|
35
|
35
91571-S10-003 ClipWIRE HARNESS (NATURAL) (130MM) |
91571-S10-003 |
US $1.89 |
||
|
36
|
36
91591-SW5-931 ClampFUEL TUBE |
91591-SW5-931 |
US $2.03 |
||
|
37
|
37
91619-SE0-000 SealDOOR HOLE, 30MM(BLACK) |
91619-SE0-000 |
from US $1.33 |
||
|
38
|
38
91642-SM4-003 GrommetWIRE HARNESS (20MM) (WHITE) |
91642-SM4-003 |
US $1.68 |
||
|
39
|
39
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $2.96 |
||
|
40
|
40
91902-S2X-003 PlasterWIRE HARNESS(50X100) |
91902-S2X-003 |
US $1.61 |
||
|
41
|
41
91902-S3N-003 PlasterWIRE HARNESS (50X50) |
91902-S3N-003 |
US $1.19 |
||
|
42
|
42
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
