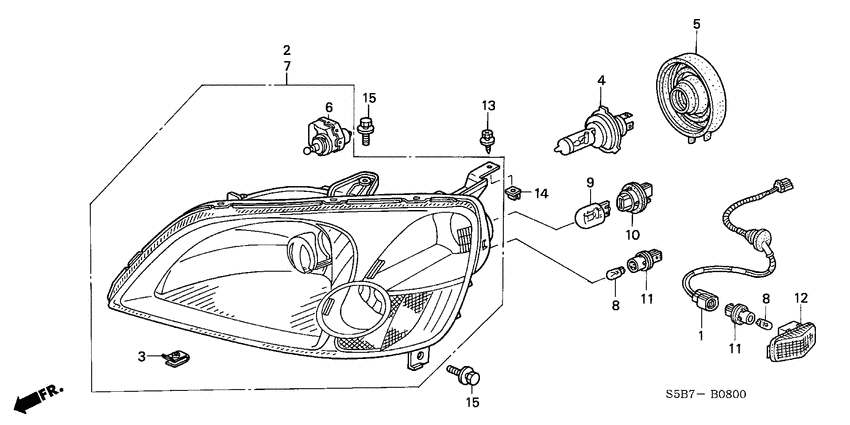

Headlight ('03) Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32118-S5A-900
Cord
|
32118-S5A-900 |
— | ||
|
2
|
2
33101-S5A-E01
Headlight unit
|
33101-S5A-E01 |
— | ||
|
3
|
3
33105-S5N-C01 NutSPECIAL |
33105-S5N-C01 |
US $3.58 |
||
|
4
|
4
33115-SV4-003
Bulb
|
33115-SV4-003 |
— | ||
|
4
|
4
33115-SV4-G01 BulbHEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
33115-SV4-G01 |
US $27.20 |
||
|
4
|
4
33115-SM4-003 Bulb |
33115-SM4-003 |
US $25.60 |
||
| replacement | |||||
|
4
|
4
33115-SV4-G01 BulbHEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
33115-SV4-G01 |
US $27.20 |
||
|
5
|
5
33126-S05-003 CoverRUBBER |
33126-S05-003 |
from US $5.22 |
||
|
6
|
6
33130-S5A-G01 Adjuster unitHEADLIGHT |
33130-S5A-G01 |
US $230.40 |
||
|
7
|
7
33151-S5A-E01
Headlight unit
|
33151-S5A-E01 |
— | ||
|
8
|
8
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
9
|
9
33303-SL4-003 BulbWEDGE (12V 21W) (STANLEY) |
33303-SL4-003 |
from US $2.38 |
||
|
10
|
10
33303-S5A-003 Socket compT20 S |
33303-S5A-003 |
US $10.35 |
||
|
11
|
11
33304-S5A-003 Socket compT10 |
33304-S5A-003 |
from US $7.33 |
||
|
12
|
12
34301-S5A-013 Lamp unit |
34301-S5A-013 |
US $11.34 |
||
|
13
|
13
90101-S5A-003 TappingSPECIAL, 5X18 |
90101-S5A-003 |
US $1.55 |
||
|
14
|
14
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
15
|
15
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
