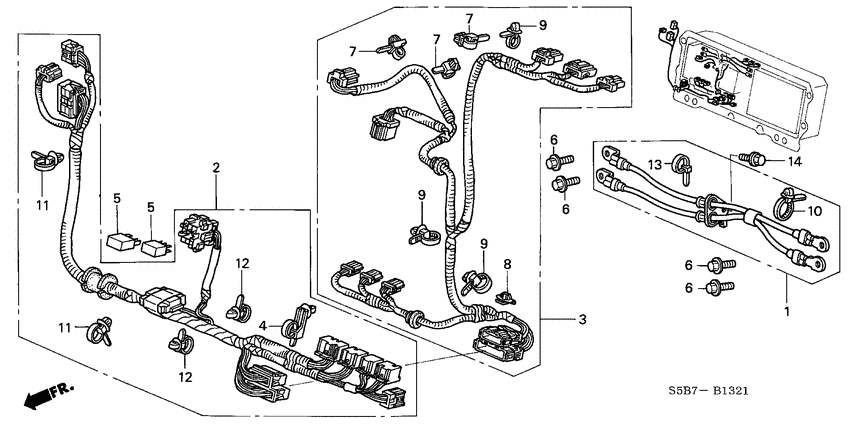

Ima wire harness Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1F110-PZA-003 Cable compPDU INPUT |
1F110-PZA-003 |
US $57.86 |
||
|
2
|
2
1N000-PZA-010
Harness
|
1N000-PZA-010 |
— | ||
|
3
|
3
1N670-PZA-010
Harness
|
1N670-PZA-010 |
— | ||
|
4
|
4
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
5
|
5
39794-S04-014 Relay assyPOWER (4P) (MICRO ISO) (MATSUSHITA) |
39794-S04-014 |
US $23.49 |
||
|
5
|
5
39794-S04-003 Relay assyPOWER (4P) (MICRO ISO) (MITSUBA) |
39794-S04-003 |
US $15.23 |
||
|
6
|
6
90120-PZA-000 BoltFLANGE, 6X12 |
90120-PZA-000 |
US $1.19 |
||
|
7
|
7
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
8
|
8
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
9
|
9
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
10
|
10
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
11
|
11
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
||
|
12
|
12
91545-S30-003 ClipHARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) |
91545-S30-003 |
US $2.31 |
||
|
13
|
13
91551-PNA-003 BandWIRE HARNESS (BLACK) (172MM) |
91551-PNA-003 |
from US $1.61 |
||
|
14
|
14
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
