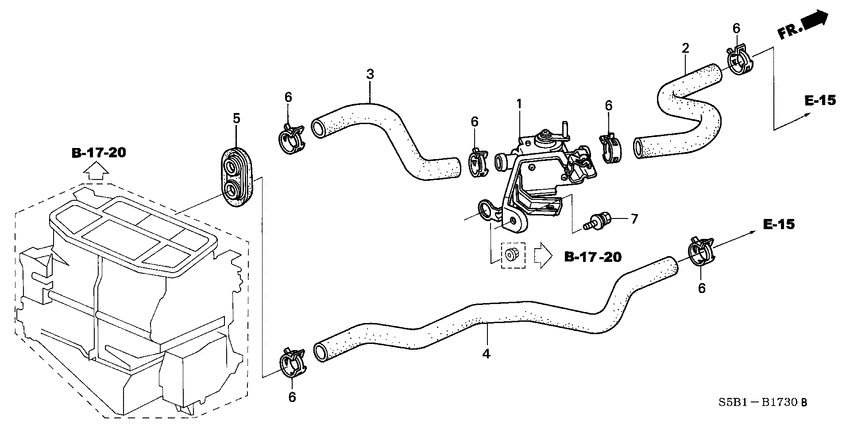

Water valve (RH) Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA1
- transmission
- 5MT
- Number of doors
- 4
- grade
- HYBRID
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79710-S5T-E01
Valve assy.
|
79710-S5T-E01 |
— | ||
|
2
|
2
79721-S5B-000 Hose aWATER IN. |
79721-S5B-000 |
US $7.98 |
||
|
3
|
3
79722-S7C-000 Hose bWATER IN. |
79722-S7C-000 |
US $10.50 |
||
|
4
|
4
79725-S5B-000 HoseWATER OUTLET |
79725-S5B-000 |
US $9.80 |
||
|
5
|
5
79731-S5A-000 GrommetHEATER PIPE |
79731-S5A-000 |
US $4.62 |
||
|
6
|
6
91405-PK1-003
Clip, WATER HOSE, 24MM
|
91405-PK1-003 |
— | ||
| replacement | |||||
|
6
|
6
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
7
|
7
93405-060-120-4 Bolt-washer6X12 |
93405-060-120-4 |
US $0.65 |
||
