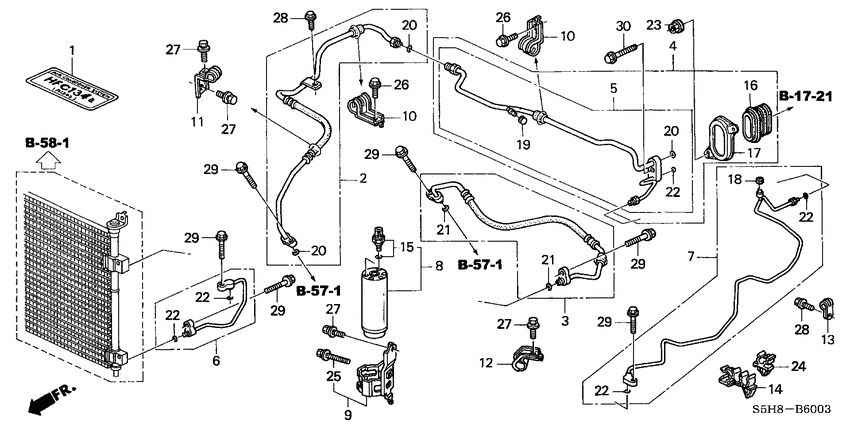

Air conditioner (HOSES/PIPES; RH; 2.0L) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.0 IVTC
- area code
- MA
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80050-SP0-000 LabelAIR CONDITIONER CAUTION (HFC134A) |
80050-SP0-000 |
from US $1.35 |
||
|
2
|
2
80311-S5G-T01
Hose comp.
|
80311-S5G-T01 |
— | ||
|
3
|
3
80315-S5G-T01
Hose comp.
|
80315-S5G-T01 |
— | ||
|
4
|
4
80320-S5G-T01
Pipe assy.
|
80320-S5G-T01 |
— | ||
|
5
|
5
80325-S5G-T01
Pipe assy.
|
80325-S5G-T01 |
— | ||
|
6
|
6
80331-S5H-K01
Pipe
|
80331-S5H-K01 |
— | ||
|
7
|
7
80341-S5G-T02
Pipe comp
|
80341-S5G-T02 |
— | ||
|
8
|
8
80351-S0D-003 Receiver comp |
80351-S0D-003 |
US $87.04 |
||
|
9
|
9
80352-S5H-K01
Bracket
|
80352-S5H-K01 |
— | ||
|
10
|
10
80361-SK7-010 Clamp aSUCTION PIPE |
80361-SK7-010 |
US $4.34 |
||
|
11
|
11
80361-S5G-T01
Clamp
|
80361-S5G-T01 |
— | ||
|
12
|
12
80362-S5G-T00
Clamp
|
80362-S5G-T00 |
— | ||
|
13
|
13
80381-SL4-000 ClampRECEIVER PIPE |
80381-SL4-000 |
US $4.62 |
||
|
14
|
14
80381-S5G-T02
Clip
|
80381-S5G-T02 |
— | ||
|
15
|
15
80440-SW5-003
Switch
|
80440-SW5-003 |
— | ||
|
15
|
15
80440-SW5-A01
Switch
|
80440-SW5-A01 |
— | ||
|
16
|
16
80464-S5A-000
Grommet
|
80464-S5A-000 |
— | ||
|
17
|
17
80465-S5H-K01
Cover
|
80465-S5H-K01 |
— | ||
|
18
|
18
80865-SW5-003 Cap comp.VALVE (H) |
80865-SW5-003 |
US $3.36 |
||
|
19
|
19
80866-SW5-003 Cap comp.VALVE(L) |
80866-SW5-003 |
US $2.87 |
||
|
20
|
20
80871-ST7-000 O-ring5/8" |
80871-ST7-000 |
from US $2.69 |
||
|
21
|
21
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
22
|
22
80873-ST7-000 O-ring8MM |
80873-ST7-000 |
from US $2.74 |
||
|
23
|
23
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
24
|
24
91548-S5A-003 ClipRECEIVER PIPE |
91548-S5A-003 |
US $1.61 |
||
|
25
|
25
93403-050-250-4 Bolt-washer5X25 |
93403-050-250-4 |
from US $0.74 |
||
|
26
|
26
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
27
|
27
93403-060-160-4 Bolt-washer6X16 |
93403-060-160-4 |
US $0.59 |
||
|
28
|
28
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
29
|
29
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
30
|
30
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
