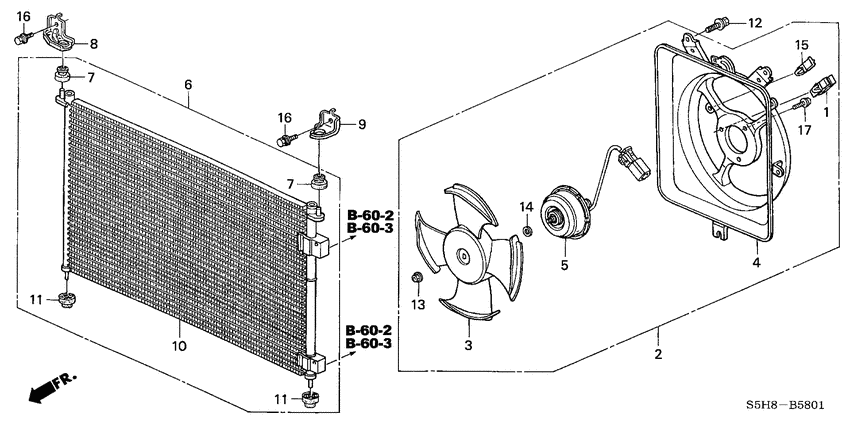

Air conditioner (CONDENSER; 2.0L) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.0 IVTC
- area code
- MA
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32175-PDA-E01 ClipHARNESS |
32175-PDA-E01 |
US $4.62 |
||
|
2
|
2
38605-PNN-902
Shroud assy.
|
38605-PNN-902 |
— | ||
|
3
|
3
38611-PLC-J01 Fan compCOOLING (KEIHIN) |
38611-PLC-J01 |
from US $40.58 |
||
|
4
|
4
38615-PNF-E01
Shroud comp.
|
38615-PNF-E01 |
— | ||
|
5
|
5
38616-PLC-J01 MotorCOOLING FAN (KEIHIN) |
38616-PLC-J01 |
US $226.56 |
||
|
6
|
6
80100-S5G-T01
Condenser assy
|
80100-S5G-T01 |
— | ||
|
7
|
7
80107-SS0-000 MountCONDENSER UPPER |
80107-SS0-000 |
US $3.11 |
||
|
8
|
8
80107-S5G-T00
Bracket
|
80107-S5G-T00 |
— | ||
|
9
|
9
80108-S5G-T00
Bracket
|
80108-S5G-T00 |
— | ||
|
11
|
11
80175-SE0-000 MountCONDENSER |
80175-SE0-000 |
from US $3.03 |
||
|
12
|
12
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
13
|
13
90041-PAA-A01 NutTOOTHED, 5MM |
90041-PAA-A01 |
US $1.47 |
||
|
14
|
14
90430-PAA-A01
Washer
|
90430-PAA-A01 |
— | ||
|
15
|
15
91508-PRA-003 ClampWIRE HARNESS |
91508-PRA-003 |
US $2.03 |
||
|
16
|
16
93403-060-160-4 Bolt-washer6X16 |
93403-060-160-4 |
US $0.59 |
||
|
17
|
17
93893-040-080-8 Screw-washer4X8 |
93893-040-080-8 |
from US $0.52 |
