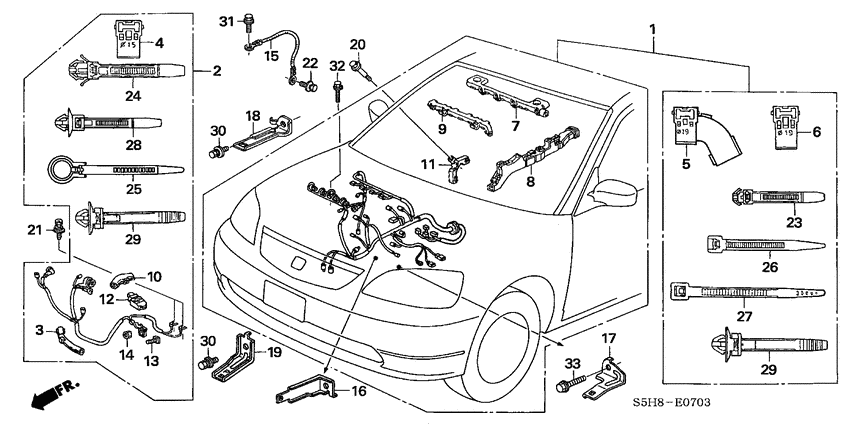

Engine wire harness (RH; 2.0L) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.0 IVTC
- area code
- MA
- right-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32110-PNN-Z51
Harness
|
32110-PNN-Z51 |
— | ||
|
2
|
2
32111-PNN-Z00
Sub cord
|
32111-PNN-Z00 |
— | ||
|
3
|
3
32117-PND-003 HolderCORRUGATED (DARK BLUE) (15MM) |
32117-PND-003 |
US $4.62 |
||
|
4
|
4
32117-P65-003 HolderCORRUGATED(DARK BLUE) (15MM) |
32117-P65-003 |
US $2.38 |
||
|
5
|
5
32118-PLC-003 HolderCORRUGATED TUBE (DARK GREEN)(19MM) |
32118-PLC-003 |
US $2.52 |
||
|
6
|
6
32118-P72-003 HolderCORRUGATED(DARK GREEN) (19MM) |
32118-P72-003 |
US $3.22 |
||
|
7
|
7
32121-RAA-A00 Holder aENGINE HARNESS |
32121-RAA-A00 |
US $8.26 |
||
|
8
|
8
32122-PNA-000 Holder bENGINE HARNESS |
32122-PNA-000 |
US $11.34 |
||
|
9
|
9
32123-PND-000 Holder comp. cENGINE HARNESS |
32123-PND-000 |
US $5.46 |
||
|
10
|
10
32124-PNA-010 Holder dENGINE HARNESS |
32124-PNA-010 |
US $3.36 |
||
|
11
|
11
32125-PRB-A00 Holder eENGINE HARNESS |
32125-PRB-A00 |
US $4.48 |
||
|
12
|
12
32418-PNN-300 CoverBATTERY TERMINAL |
32418-PNN-300 |
from US $6.16 |
||
|
13
|
13
32601-SK7-900 BoltBATTERY TERMINAL |
32601-SK7-900 |
from US $2.81 |
||
|
14
|
14
32602-SK7-900 NutBATTERY TERMINAL |
32602-SK7-900 |
from US $2 |
||
|
15
|
15
32610-S5B-000 CableSUB EARTH |
32610-S5B-000 |
US $8.82 |
||
|
16
|
16
32742-PND-A00
Stay b
|
32742-PND-A00 |
— | ||
|
17
|
17
32743-PND-000
Stay c
|
32743-PND-000 |
— | ||
|
18
|
18
32745-PND-000
Stay e
|
32745-PND-000 |
— | ||
|
19
|
19
32746-PNB-A00
Stay f
|
32746-PNB-A00 |
— | ||
|
20
|
20
90051-PNA-000 BoltSPECIAL, 6X28 |
90051-PNA-000 |
from US $1.33 |
||
|
21
|
21
90114-SM4-900 Bolt6X15 |
90114-SM4-900 |
US $3.91 |
||
|
22
|
22
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
23
|
23
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
24
|
24
91507-P01-003 Clip bHARNESS BAND (DARK BROWN) (129.4MM) |
91507-P01-003 |
from US $2.25 |
||
|
25
|
25
91531-S5B-003 BandHARNESS (BLACK) (120MM) |
91531-S5B-003 |
US $3.58 |
||
|
26
|
26
91551-PNA-003 BandWIRE HARNESS (BLACK) (172MM) |
91551-PNA-003 |
from US $1.61 |
||
|
27
|
27
91556-PDF-E01 BandCLAMP(NATURAL)(143.2MM) |
91556-PDF-E01 |
US $1.61 |
||
|
28
|
28
91558-P8C-A01 ClipHARNESS BAND (VIOLET) (150MM) |
91558-P8C-A01 |
US $1.89 |
||
|
29
|
29
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
30
|
30
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
31
|
31
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
32
|
32
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
33
|
33
95701-080-250-8 BoltFLANGE, 8X25 |
95701-080-250-8 |
from US $0.74 |
