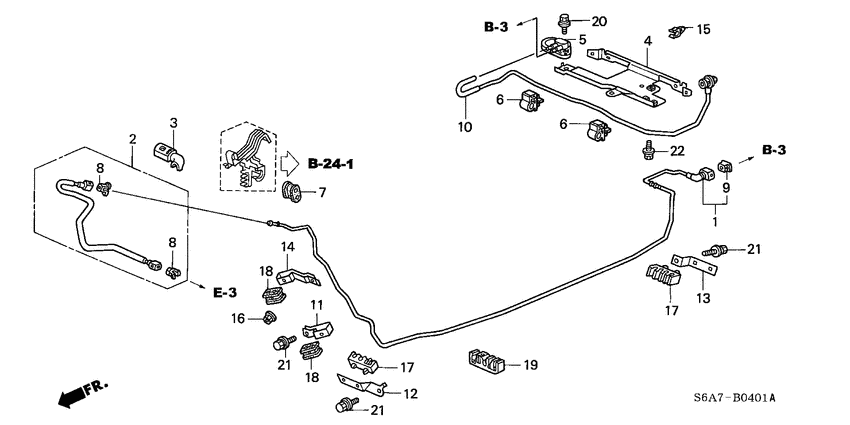

Fuel pipe (2) Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Y
- transmission
- 5MT
- Number of doors
- 5
- grade
- 150I
- abs
- +
- area code
- KN
- right-hand drive
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16040-S6A-G30 Pipe compFUEL FEED |
16040-S6A-G30 |
US $53.38 |
||
|
2
|
2
16722-PLD-003 Hose comp.FUEL FEED |
16722-PLD-003 |
US $48.13 |
||
|
3
|
3
16725-PLC-003 Clamp aFUEL HOSE (BLACK) |
16725-PLC-003 |
US $2.31 |
||
|
4
|
4
17358-S5A-T30 BracketCANISTER |
17358-S5A-T30 |
US $14.34 |
||
|
5
|
5
17371-SM4-013
Valve
|
17371-SM4-013 |
— | ||
|
6
|
6
17556-SL4-023 ClipFUEL PIPE (BLACK) |
17556-SL4-023 |
US $3.11 |
||
|
7
|
7
17701-S5A-930 RubberFUEL PIPE INSULATOR |
17701-S5A-930 |
US $4.20 |
||
|
8
|
8
17711-S0X-A31 RetainerGREEN)(TOKAI |
17711-S0X-A31 |
from US $3.40 |
||
|
9
|
9
17711-S84-004 RetainerWHITE)(SANOH |
17711-S84-004 |
US $4.07 |
||
|
10
|
10
17724-S5A-Y31
Tube c
|
17724-S5A-Y31 |
— | ||
|
11
|
11
17762-S5A-930
Stay b
|
17762-S5A-930 |
— | ||
|
12
|
12
17763-S5A-930
Stay c
|
17763-S5A-930 |
— | ||
|
13
|
13
17764-S5A-930
Stay d
|
17764-S5A-930 |
— | ||
|
14
|
14
17765-S5A-930
Stay e
|
17765-S5A-930 |
— | ||
|
15
|
15
53723-SF1-951 ClipRETURN PIPE, 6MM |
53723-SF1-951 |
from US $1.96 |
||
|
16
|
16
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
17
|
17
91595-S5A-931 Clamp aFUEL PIPE |
91595-S5A-931 |
US $3.92 |
||
|
18
|
18
91598-S5A-930 RubberFUEL PIPE INSULATOR |
91598-S5A-930 |
US $2.31 |
||
|
19
|
19
91599-S5A-931 Clamp bFUEL PIPE |
91599-S5A-931 |
US $5.77 |
||
|
20
|
20
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
21
|
21
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
22
|
22
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
