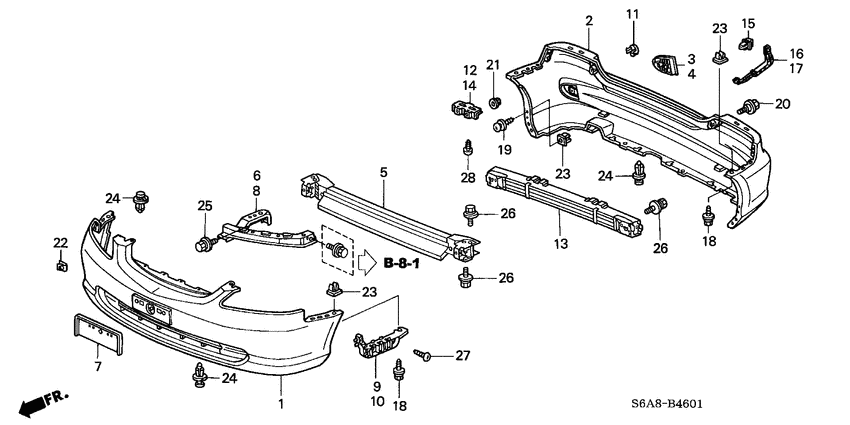

Bumpers ('04) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- D17A
- transmission
- 5MT
- Number of doors
- 5
- grade
- VTI
- abs
- +
- power steering
- +
- area code
- KQ
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04711-S6A-010ZZ
Face
|
04711-S6A-010ZZ |
— | ||
|
2
|
2
04715-S6A-010ZZ
Face
|
04715-S6A-010ZZ |
— | ||
|
3
|
3
33505-S6A-003 Reflector assyR. RR. |
33505-S6A-003 |
US $22.78 |
||
|
4
|
4
33555-S6A-003 Reflector assyL. RR. |
33555-S6A-003 |
US $22.78 |
||
|
5
|
5
71130-S6A-E00ZZ Beam compFR. BUMPER |
71130-S6A-E00ZZ |
US $244.48 |
||
|
6
|
6
71140-S6A-000 Beam compR. FR. BUMPER UPPER |
71140-S6A-000 |
from US $22.63 |
||
|
7
|
7
71145-S21-000 BaseFR. LICENSE PLATE |
71145-S21-000 |
US $24.71 |
||
|
8
|
8
71190-S6A-000 Beam compL. FR. BUMPER UPPER |
71190-S6A-000 |
from US $22.63 |
||
|
9
|
9
71193-S6A-000 SpacerR. FR. BUMPER SIDE |
71193-S6A-000 |
US $11.70 |
||
|
10
|
10
71198-S6A-000 SpacerL. FR. BUMPER SIDE |
71198-S6A-000 |
US $11.70 |
||
|
11
|
11
71503-S6A-900ZF CapRR. BUMPER *NH623M* |
71503-S6A-900ZF |
US $6.16 |
||
|
11
|
11
71503-S6A-900YB CapRR. BUMPER *G511M* |
71503-S6A-900YB |
US $6.16 |
||
|
11
|
11
71503-S6A-900ZA CapRR. BUMPER *B92P* |
71503-S6A-900ZA |
US $6.16 |
||
|
11
|
11
71503-S6A-900ZE CapRR. BUMPER *NH578* |
71503-S6A-900ZE |
US $6.16 |
||
|
11
|
11
71503-S6A-900ZK CapRR. BUMPER *R81* |
71503-S6A-900ZK |
US $6.86 |
||
|
11
|
11
71503-S6A-900YH CapRR. BUMPER *NH674P* |
71503-S6A-900YH |
US $6.16 |
||
|
11
|
11
71503-S6A-900ZB CapRR. BUMPER *B96P* |
71503-S6A-900ZB |
US $6.16 |
||
|
12
|
12
71505-S5A-J00 BracketR. RR. BUMPER SIDE |
71505-S5A-J00 |
US $6.58 |
||
|
13
|
13
71530-S6A-E00ZZ Beam compRR. BUMPER |
71530-S6A-E00ZZ |
US $195.84 |
||
|
14
|
14
71555-S5A-J00 BracketL. RR. BUMPER SIDE |
71555-S5A-J00 |
US $6.58 |
||
|
15
|
15
71592-S6A-000 Clip assy.BUMPER SPACER |
71592-S6A-000 |
US $1.47 |
||
|
16
|
16
71593-S6A-003
Spacer
|
71593-S6A-003 |
— | ||
|
17
|
17
71598-S6A-003
Spacer
|
71598-S6A-003 |
— | ||
|
18
|
18
90109-SS0-000 ScrewTAPPING, 5X20 |
90109-SS0-000 |
US $2.07 |
||
|
19
|
19
90126-SR4-000 Screw-washer5X16 |
90126-SR4-000 |
from US $2.72 |
||
|
20
|
20
90149-SA0-003 BoltBUMPER |
90149-SA0-003 |
from US $2 |
||
|
21
|
21
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
22
|
22
90675-SA5-003 NutCLIP, 6MM |
90675-SA5-003 |
from US $1.92 |
||
|
23
|
23
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
24
|
24
91503-SZ3-003 Clip A |
91503-SZ3-003 |
from US $1.94 |
||
|
25
|
25
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
26
|
26
93407-080-200-8 Bolt-washer8X20 |
93407-080-200-8 |
US $0.81 |
||
|
27
|
27
93903-25320 ScrewTAPPING, 5X16 |
93903-25320 |
from US $0.22 |
||
|
28
|
28
93913-25120 ScrewTAPPING, 5X10(PO) |
93913-25120 |
from US $0.37 |
