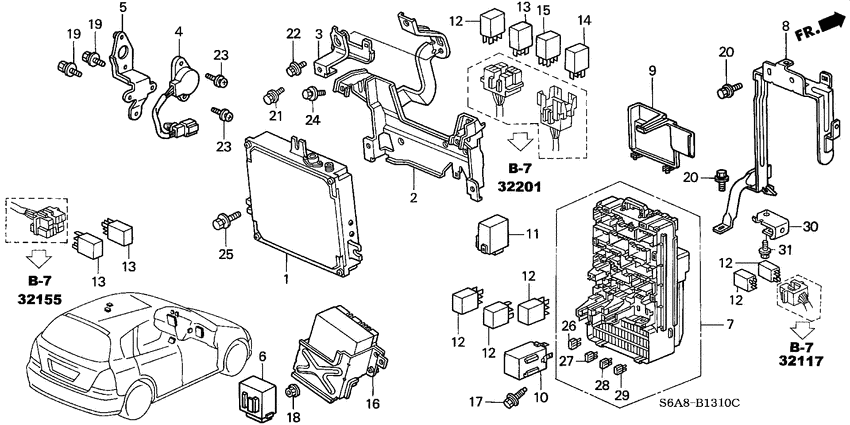

Control unit (CABIN) Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC
- Sales region
- General
- Engine
- D17A
- transmission
- 5MT
- Number of doors
- 5
- grade
- VTI
- abs
- +
- power steering
- +
- area code
- KQ
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37820-PLR-Q13
Control module
|
37820-PLR-Q13 |
— | ||
|
2
|
2
37827-PLD-000 BracketENGINE CONTROL MODULE |
37827-PLD-000 |
US $16.13 |
||
|
3
|
3
37828-PLD-000 BracketRELAY |
37828-PLD-000 |
US $9.94 |
||
|
6
|
6
38140-S3N-003 Control unitRR. WIPER |
38140-S3N-003 |
US $65.28 |
||
|
7
|
7
38200-S6A-Q02 Box assyFUSE |
38200-S6A-Q02 |
US $346.88 |
||
|
8
|
8
38201-S5A-010 BracketFUSE BOX |
38201-S5A-010 |
US $17.02 |
||
|
9
|
9
38203-S5A-003 CoverFUSE BOX |
38203-S5A-003 |
US $9.94 |
||
|
10
|
10
38300-S5T-004 Relay assyTURN SIGNAL & HAZARD (066500-5080) (DENSO) |
38300-S5T-004 |
US $46.97 |
||
|
10
|
10
38300-S5T-003 Relay assyTURN SIGNAL & HAZARD (FR-3321) (MITSUBA) |
38300-S5T-003 |
US $33.41 |
||
|
11
|
11
38385-S5A-U01 Receiver unitKEYLESS ENTRY |
38385-S5A-U01 |
US $181.76 |
||
|
11
|
11
38385-S7A-G01 Receiver unitKEYLESS ENTRY |
38385-S7A-G01 |
US $183.04 |
||
|
12
|
12
39794-S04-003 Relay assyPOWER (4P) (MICRO ISO) (MITSUBA) |
39794-S04-003 |
US $15.23 |
||
|
12
|
12
39794-S04-004
Relay assy
00000000 - 3S200061 |
39794-S04-004 |
— | ||
|
12
|
12
39794-S04-014 Relay assyPOWER (4P) (MICRO ISO) (MATSUSHITA) 3S200062 - |
39794-S04-014 |
US $23.49 |
||
|
14
|
14
39794-S5A-004 Relay assyFUEL PUMP(5P) (DENSO) |
39794-S5A-004 |
US $21.12 |
||
|
14
|
14
39794-S5A-003 Relay assyFUEL PUMP(5P) (MITSUBA) |
39794-S5A-003 |
US $16.77 |
||
|
15
|
15
39794-S5A-902 Relay assyENGINE CONTROL MODULE(4P)(DENSO) |
39794-S5A-902 |
US $21.12 |
||
|
15
|
15
39794-S5A-901 Relay assyENGINE CONTROL MODULE(4P)(MITSUBA) |
39794-S5A-901 |
US $16.77 |
||
|
16
|
16
39980-S6A-J01
Eps unit
|
39980-S6A-J01 |
— | ||
|
17
|
17
90137-SF1-000 Bolt-washer6X25 |
90137-SF1-000 |
US $2.12 |
||
|
18
|
18
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
20
|
20
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
21
|
21
90133-SM4-003 Bolt-washer5X16 |
90133-SM4-003 |
US $1.82 |
||
|
22
|
22
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
22
|
22
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
25
|
25
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
26
|
26
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
27
|
27
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
28
|
28
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
29
|
29
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
||
