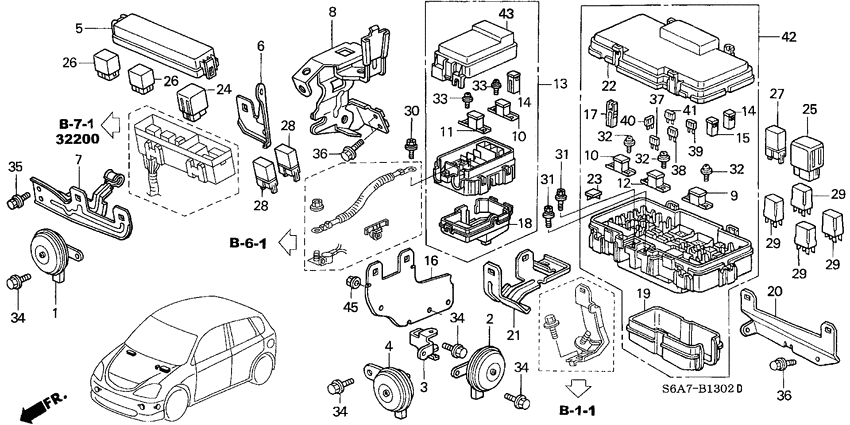

Control unit (ENGINE ROOM; DIESEL; RH) Diagram Honda CIVIC
- Year
- 2002
- Model code
- CIVIC
- Sales region
- General
- Engine
- 4EE2
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.7S
- abs
- +
- area code
- KE
- right-hand drive
- +
- left-hand drive
- +
- side srs
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38100-S04-A01 Horn assyLOW (MITSUBA) |
38100-S04-A01 |
US $42.88 |
||
|
1
|
1
38100-S6D-E01 Horn assyLOW(SEGER) |
38100-S6D-E01 |
US $49.79 |
||
|
4
|
4
38150-S6D-E01 Horn assyHIGH (SEGER) |
38150-S6D-E01 |
US $49.79 |
||
|
4
|
4
38150-ST7-G01
Horn assy
|
38150-ST7-G01 |
— | ||
|
5
|
5
38192-S6F-G01 CoverMULTI RELAY |
38192-S6F-G01 |
US $10.78 |
||
|
6
|
6
38196-S6F-000 BracketSUB RELAY BOX |
38196-S6F-000 |
US $5.88 |
||
|
7
|
7
38197-S6F-000 Bracket comp.SUB RELAY BOX |
38197-S6F-000 |
US $21.38 |
||
|
8
|
8
38198-S6F-000 Bracket comp.SUB RELAY BOX |
38198-S6F-000 |
US $24.58 |
||
|
9
|
9
38213-SM4-003 FuseBLOCK (50A) |
38213-SM4-003 |
from US $6.36 |
||
|
10
|
10
38214-SS1-003 FuseBLOCK (60A) |
38214-SS1-003 |
US $6.02 |
||
|
11
|
11
38215-SX8-003 FuseBLOCK (70A) |
38215-SX8-003 |
from US $5.87 |
||
|
12
|
12
38218-SM4-003 FuseBLOCK (100A) |
38218-SM4-003 |
from US $8.47 |
||
|
13
|
13
38230-S6F-G01
Box assy
|
38230-S6F-G01 |
— | ||
|
14
|
14
38231-S04-003 FuseBLOCK (30A) |
38231-S04-003 |
US $2.31 |
||
|
15
|
15
38231-S04-961 FuseBLOCK (40A) |
38231-S04-961 |
US $2.31 |
||
|
16
|
16
38231-S6F-E00 BracketSUB FUSE BOX |
38231-S6F-E00 |
US $11.90 |
||
|
17
|
17
38235-S04-003 PullerMINI FUSE (SUMITOMO) |
38235-S04-003 |
from US $1.58 |
||
|
18
|
18
38252-S2K-003 CoverLOWER |
38252-S2K-003 |
US $7.56 |
||
|
19
|
19
38252-S5A-003 CoverLOWER |
38252-S5A-003 |
US $11.90 |
||
|
20
|
20
38252-S5T-000 Bracket bRELAY BOX |
38252-S5T-000 |
US $11.90 |
||
|
21
|
21
38253-S5T-000 BracketRELAY BOX SIDE |
38253-S5T-000 |
US $10.92 |
||
|
22
|
22
38254-S6F-G01
Cover
|
38254-S6F-G01 |
— | ||
|
23
|
23
38255-S6F-G01
Busbar assy.
|
38255-S6F-G01 |
— | ||
|
24
|
24
39762-SG0-003 Relay assyPOWER (5P) (DENSO) (056700-8160) |
39762-SG0-003 |
US $37.76 |
||
|
25
|
25
39792-SE0-004 Relay assyPOWER (4P) (OMRON) (G4R-1A21T-H22) |
39792-SE0-004 |
US $36.61 |
||
|
26
|
26
39792-S6F-E01
Relay
|
39792-S6F-E01 |
— | ||
|
27
|
27
39794-SE0-003 Relay assyPOWER(4P)(DENSO) (056700-7250) |
39794-SE0-003 |
US $18.43 |
||
|
27
|
27
39794-SL0-004 Relay assyPOWER(4P) (MITSUBA)(RC-2225)(BLACK) |
39794-SL0-004 |
US $16.51 |
||
|
28
|
28
39794-SL0-J01 Relay assyPOWER (4P) (MITSUBA) (RC-2226) (BROWN) |
39794-SL0-J01 |
US $19 |
||
|
29
|
29
39794-S04-003 Relay assyPOWER (4P) (MICRO ISO) (MITSUBA) |
39794-S04-003 |
US $15.23 |
||
|
29
|
29
39794-S04-004
Relay assy
|
39794-S04-004 |
— | ||
|
29
|
29
39794-S84-A01 Relay assyPOWER (4P) (MICRO ISO) (TYCO) |
39794-S84-A01 |
US $26.11 |
||
|
30
|
30
90114-SG0-003 Bolt5X13 |
90114-SG0-003 |
from US $1.82 |
||
|
31
|
31
90114-SM4-900 Bolt6X15 |
90114-SM4-900 |
US $3.91 |
||
|
32
|
32
90129-SP0-000 Screw-washer5X12 |
90129-SP0-000 |
US $1.26 |
||
|
33
|
33
90129-SX8-003 Screw-washer5X12 |
90129-SX8-003 |
US $1.61 |
||
|
34
|
34
90150-S84-003 BoltEARTH, 8X16 |
90150-S84-003 |
US $1.88 |
||
|
35
|
35
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
36
|
36
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
37
|
37
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
38
|
38
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
39
|
39
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
40
|
40
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
||
|
41
|
41
98200-43000 FuseMINI (30A) |
98200-43000 |
from US $0.74 |
||
|
42
|
42
38250-S6F-G01
Box assy
|
38250-S6F-G01 |
— | ||
|
45
|
45
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
