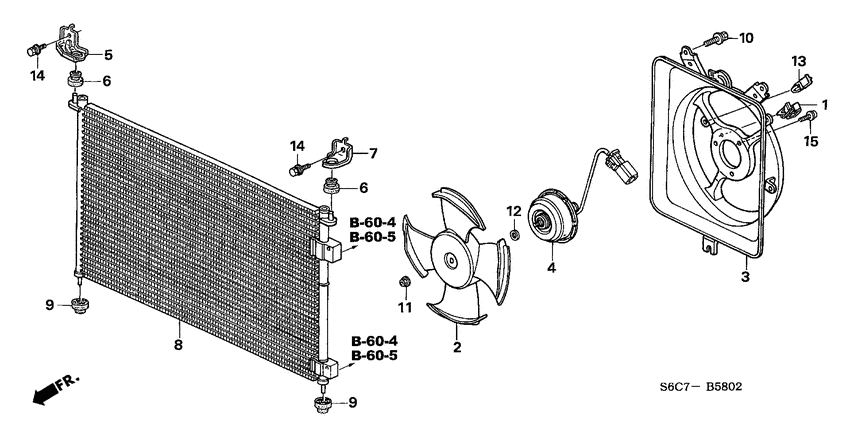

Air conditioner (CONDENSER; 2.0L) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0VSA
- area code
- KE
- right-hand drive
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32175-PDA-E01 ClipHARNESS |
32175-PDA-E01 |
US $4.62 |
||
|
2
|
2
38611-PRA-005 Fan compCOOLING |
38611-PRA-005 |
from US $42.88 |
||
|
3
|
3
38615-PNF-E01
Shroud comp.
|
38615-PNF-E01 |
— | ||
|
4
|
4
38616-PRA-005 MotorCOOLING FAN |
38616-PRA-005 |
US $279.75 |
||
|
5
|
5
80107-S5T-000 BracketR. CONDENSER UPPER |
80107-S5T-000 |
US $4.13 |
||
|
6
|
6
80107-S87-A01 RubberCONDENSER UPPER |
80107-S87-A01 |
US $2.80 |
||
|
7
|
7
80108-S5T-000 BracketL. CONDENSER UPPER |
80108-S5T-000 |
US $4.13 |
||
|
8
|
8
80110-S5T-E01 Condenser comp. |
80110-S5T-E01 |
US $581.12 |
||
|
9
|
9
80175-S87-A01 RubberCONDENSER MOUNTING |
80175-S87-A01 |
US $2.87 |
||
|
10
|
10
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
11
|
11
90041-PRA-005 NutFLANGE, 5MM |
90041-PRA-005 |
US $2.10 |
||
|
12
|
12
90430-PRA-005
Washer
|
90430-PRA-005 |
— | ||
|
13
|
13
91508-PRA-003 ClampWIRE HARNESS |
91508-PRA-003 |
US $2.03 |
||
|
14
|
14
93403-060-160-4 Bolt-washer6X16 |
93403-060-160-4 |
US $0.59 |
||
|
15
|
15
93893-040-080-8 Screw-washer4X8 |
93893-040-080-8 |
from US $0.52 |
