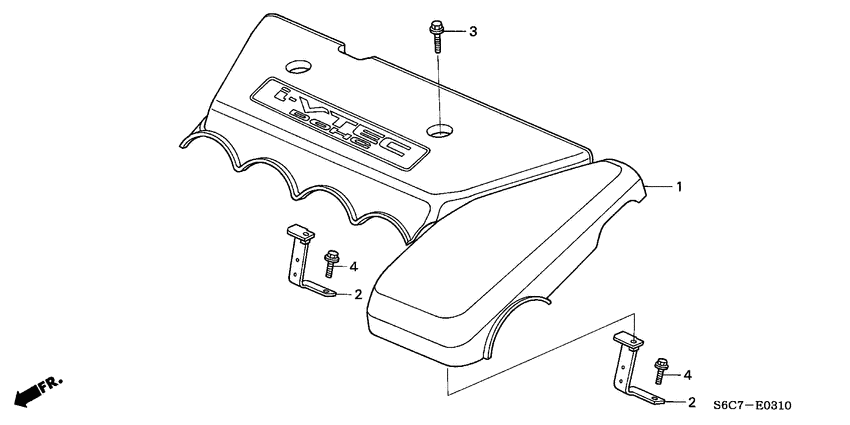

Engine cover (2.0L) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0VSA
- area code
- KE
- right-hand drive
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17121-PNF-G00 Cover assy.ENGINE |
17121-PNF-G00 |
US $96 |
||
|
2
|
2
17122-PNC-J00
Stay comp
|
17122-PNC-J00 |
— | ||
|
3
|
3
90102-PND-000 BoltSPECIAL FLANGE, 6X38 |
90102-PND-000 |
US $2.74 |
||
|
4
|
4
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
