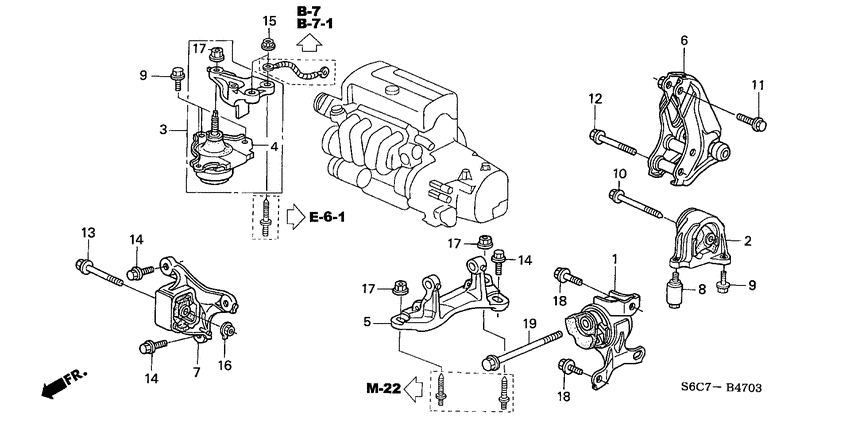

Engine mounts (MT; 2.0L) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0VSA
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50805-S7C-013
Rubber assy.
|
50805-S7C-013 |
— | ||
|
2
|
2
50810-S7C-003 Rubber assy.RR. ENGINE MOUNTING |
50810-S7C-003 |
US $86.02 |
||
|
3
|
3
50820-S6E-E02 Rubber assy.ENGINE SIDE MOUNTING |
50820-S6E-E02 |
US $177.92 |
||
|
4
|
4
50821-S6M-013 Rubber compENGINE SIDE MOUNTING |
50821-S6M-013 |
US $234.87 |
||
|
5
|
5
50825-S7C-000
Bracket
|
50825-S7C-000 |
— | ||
|
6
|
6
50827-S6M-J00 BracketRR. ENGINE MOUNTING |
50827-S6M-J00 |
US $70.40 |
||
|
7
|
7
50840-S6M-010
Stopper
5U200223 - |
50840-S6M-010 |
— | ||
|
7
|
7
50840-S6M-000
Stopper
00000000 - 5U200222 |
50840-S6M-000 |
— | ||
|
8
|
8
90161-S7C-000 BoltSPECIAL FLANGE, 10X77 |
90161-S7C-000 |
US $11.34 |
||
|
9
|
9
90163-S5A-000 BoltFLANGE, 10X20 |
90163-S5A-000 |
from US $1.19 |
||
|
10
|
10
90164-SH3-010 BoltFLANGE, 12X90 |
90164-SH3-010 |
US $7.98 |
||
|
11
|
11
90165-S7C-000 BoltFLANGE, 12X54 |
90165-S7C-000 |
US $4.34 |
||
|
12
|
12
90166-S7C-000 BoltFLANGE, 12X84 |
90166-S7C-000 |
US $4.90 |
||
|
13
|
13
90167-S5A-010 BoltFLANGE, 12X88 |
90167-S5A-010 |
US $4.80 |
||
|
14
|
14
90168-S5A-000 BoltFLANGE, 12X35 |
90168-S5A-000 |
from US $2.22 |
||
|
15
|
15
90371-SR3-000 NutFLANGE, 12MM |
90371-SR3-000 |
US $4.07 |
||
|
16
|
16
90371-S5A-000 NutYOKE, 12MM |
90371-S5A-000 |
US $4.56 |
||
|
17
|
17
94050-12080 NutFLANGE, 12MM |
94050-12080 |
from US $0.81 |
||
|
18
|
18
95701-120-200-8 BoltFLANGE, 12X20 |
95701-120-200-8 |
from US $0.89 |
||
|
19
|
19
96300-121-200-8 BoltFLANGE, 12X120 |
96300-121-200-8 |
US $2.07 |
