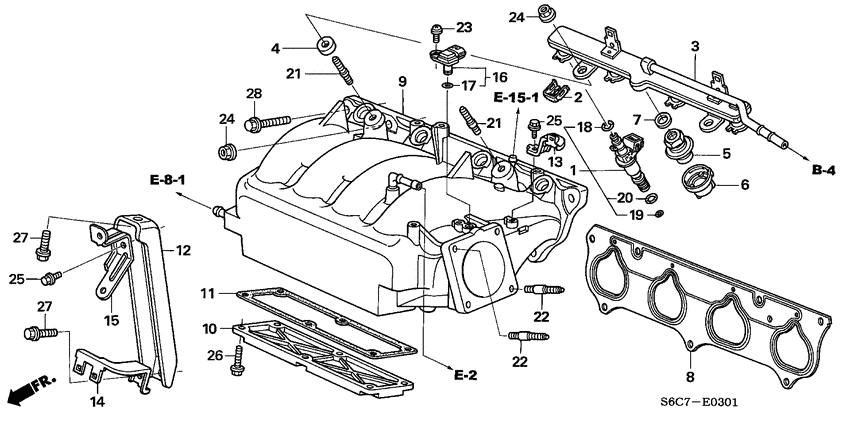

Intake manifold (2.0L) Diagram Honda CIVIC
- Year
- 2005
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0VSA
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16450-RAA-A01 Injector assyAIR ASSIST FUEL |
16450-RAA-A01 |
US $189.99 |
||
|
2
|
2
16451-PLC-000 ClipINJECTOR |
16451-PLC-000 |
from US $3.64 |
||
|
3
|
3
16620-PNC-J01 Pipe compFUEL |
16620-PNC-J01 |
US $85.76 |
||
|
4
|
4
16638-PNA-000 InsulatorFUEL PIPE |
16638-PNA-000 |
US $5.70 |
||
|
5
|
5
16680-PZA-L01 Damper assy.PULSATION |
16680-PZA-L01 |
US $31.23 |
||
|
6
|
6
16681-PRB-A00 CapPULSATION DAMPER |
16681-PRB-A00 |
US $3.08 |
||
|
7
|
7
16705-PD1-003 GasketSILENCER |
16705-PD1-003 |
from US $2.74 |
||
|
8
|
8
17055-PNA-004 Gasket aINJECTOR BASE |
17055-PNA-004 |
from US $11.69 |
||
|
9
|
9
17100-PNF-G00 Manifold compINTAKE |
17100-PNF-G00 |
US $599.04 |
||
|
10
|
10
17101-PRB-A00 CoverINTAKE MANIFOLD |
17101-PRB-A00 |
US $23.42 |
||
|
11
|
11
17102-PRB-A01 GasketINTAKE MANIFOLD COVER |
17102-PRB-A01 |
US $6.44 |
||
|
12
|
12
17125-PRB-A00
Stay comp
|
17125-PRB-A00 |
— | ||
|
13
|
13
32741-PNF-G10
Stay a
|
32741-PNF-G10 |
— | ||
|
14
|
14
32742-PNA-000
Stay b
|
32742-PNA-000 |
— | ||
|
15
|
15
32744-PRB-A00
Stay d
|
32744-PRB-A00 |
— | ||
|
16
|
16
37830-PNC-003 Map Sensor assyMAP |
37830-PNC-003 |
from US $145.18 |
||
|
17
|
17
37835-PGK-A01 O-ring |
37835-PGK-A01 |
from US $2.15 |
||
|
18
|
18
91301-PLC-000 O-ring7.47X3.6 |
91301-PLC-000 |
from US $1.80 |
||
|
19
|
19
91302-PCA-000 O-ring6.95X1.7 |
91302-PCA-000 |
from US $2.86 |
||
|
20
|
20
91302-PNA-003 O-ring7.45X3.61(NOK) |
91302-PNA-003 |
from US $1.39 |
||
|
21
|
21
92900-08022-0B BoltSTUD, 8X22 |
92900-08022-0B |
from US $0.74 |
||
|
22
|
22
92900-08050-1B BoltSTUD, 8X50 |
92900-08050-1B |
US $1.04 |
||
|
23
|
23
93892-050-200-8 Screw-washer5X20 |
93892-050-200-8 |
from US $0.47 |
||
|
24
|
24
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
25
|
25
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
26
|
26
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
27
|
27
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
28
|
28
95701-080-280-8 BoltFLANGE, 8X28 |
95701-080-280-8 |
from US $0.74 |
