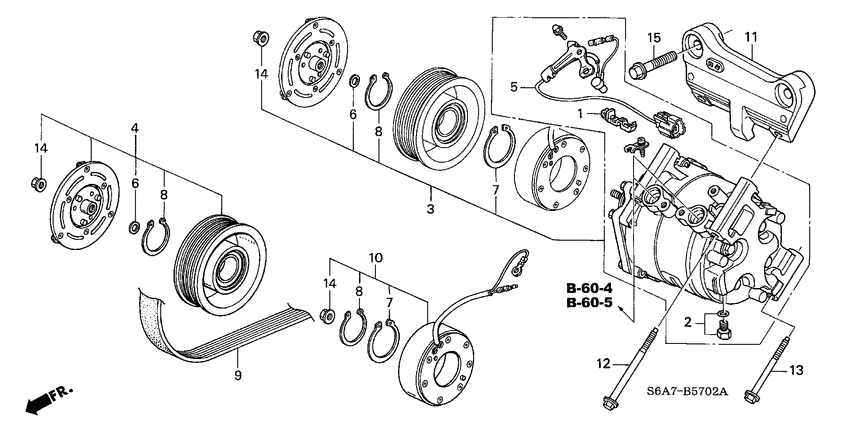

Air conditioner (COMPRESSOR; 2.0L) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0
- abs
- +
- area code
- KE
- right-hand drive
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38773-PJ7-003 ClipWIRE HARNESS |
38773-PJ7-003 |
US $2.10 |
||
|
2
|
2
38801-PCA-006
Valve sub assy.
|
38801-PCA-006 |
— | ||
|
3
|
3
38810-PRA-006 Compressor comp. |
38810-PRA-006 |
US $1,003.52 |
||
|
4
|
4
38900-PND-006 Clutch setCOMPRESSOR |
38900-PND-006 |
US $282.88 |
||
|
5
|
5
38908-PRA-006
Protector set
|
38908-PRA-006 |
— | ||
|
6
|
6
38912-P06-006
Shim set
|
38912-P06-006 |
— | ||
|
7
|
7
38913-P06-006 CirclipEXTERNAL, 45MM |
38913-P06-006 |
US $5.74 |
||
|
8
|
8
38914-P06-006
Circlip
|
38914-P06-006 |
— | ||
|
9
|
9
38920-PNF-004
Belt
|
38920-PNF-004 |
— | ||
|
10
|
10
38924-PRA-006 Coil setSOLENOID |
38924-PRA-006 |
US $103.68 |
||
|
11
|
11
38930-PNC-000 BracketCOMPRESSOR |
38930-PNC-000 |
US $25.86 |
||
|
12
|
12
90023-PNA-000 BoltFLANGE, 8X80 |
90023-PNA-000 |
US $1.89 |
||
|
13
|
13
90024-PNA-000 BoltFLANGE, 8X65 |
90024-PNA-000 |
US $1.89 |
||
|
14
|
14
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
15
|
15
95701-100-400-8 BoltFLANGE, 10X40 |
95701-100-400-8 |
from US $0.81 |
