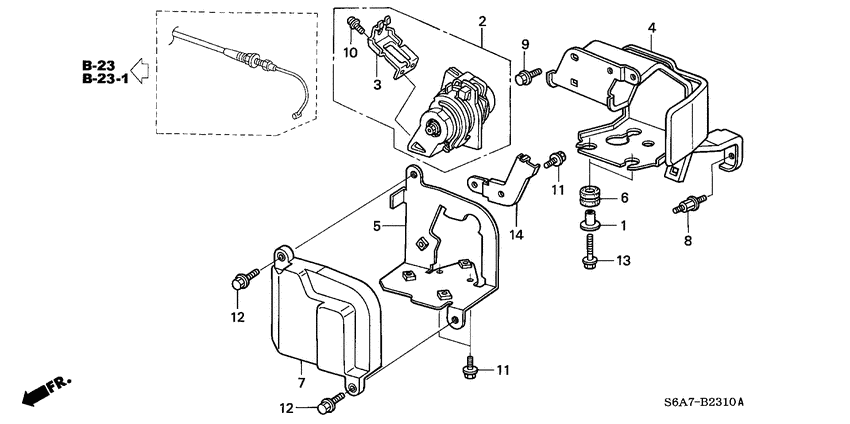

Accelerator sensor (VSA) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0VSA
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36641-PY3-000 CollarACTUATOR MOUNT |
36641-PY3-000 |
US $2.94 |
||
|
2
|
2
37971-RDJ-A01 Sensor assyACCELERATOR PEDAL |
37971-RDJ-A01 |
US $168.96 |
||
|
3
|
3
37972-RCA-A01
Stay
|
37972-RCA-A01 |
— | ||
|
4
|
4
37976-PNF-G11 Bracket comp.ACCELERATOR PEDAL SENSOR |
37976-PNF-G11 |
US $61.44 |
||
|
5
|
5
37977-PNF-G11
Stay comp
|
37977-PNF-G11 |
— | ||
|
6
|
6
37978-RCA-A00 RubberMOUNT |
37978-RCA-A00 |
US $4.62 |
||
|
7
|
7
37996-PNF-G10
Cover comp.
|
37996-PNF-G10 |
— | ||
|
8
|
8
90014-PNF-G11 BoltACCELERATOR PEDAL SENSOR BRACKET |
90014-PNF-G11 |
US $2.45 |
||
|
9
|
9
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
10
|
10
93402-050-140-8 Bolt-washer5X14 |
93402-050-140-8 |
US $0.52 |
||
|
11
|
11
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
12
|
12
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
13
|
13
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
14
|
14
37978-PNF-G11
Stay b
|
37978-PNF-G11 |
— |
