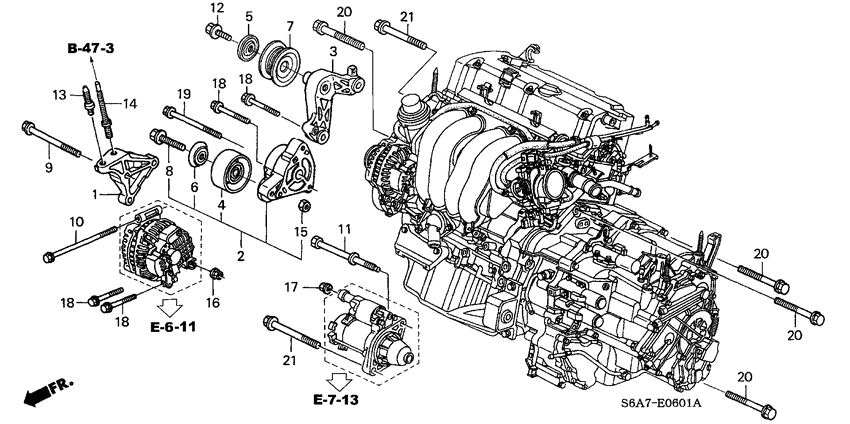

Engine mounting bracket (2.0L) Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0VSA
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11910-PNA-000 BracketENGINE SIDE MOUNTING |
11910-PNA-000 |
US $35.46 |
||
|
2
|
2
31170-PND-003
Tensioner assy
|
31170-PND-003 |
— | ||
|
3
|
3
31175-PRA-000 BracketIDLE PULLEY |
31175-PRA-000 |
US $46.72 |
||
|
4
|
4
31180-PNA-003 Pulley compIDLER |
31180-PNA-003 |
US $32.92 |
||
|
5
|
5
31185-PCX-003 CoverBEARING |
31185-PCX-003 |
US $11.07 |
||
|
6
|
6
31185-PNA-003 CoverBEARING |
31185-PNA-003 |
US $7.33 |
||
|
7
|
7
31190-PRA-000 Pulley compIDLE |
31190-PRA-000 |
US $38.53 |
||
|
8
|
8
90002-PNA-000 BoltSPECIAL, 10X28 |
90002-PNA-000 |
from US $1.75 |
||
|
9
|
9
90008-PNA-000 Bolt10X75 |
90008-PNA-000 |
US $2.73 |
||
|
10
|
10
90025-PNA-000 BoltSPECIAL, 8X105 |
90025-PNA-000 |
US $4.32 |
||
|
11
|
11
90027-PND-A00 BoltSPECIAL, 10X50 |
90027-PND-A00 |
US $2.73 |
||
|
12
|
12
90031-PRA-000 BoltSPECIAL FLANGE, 10X25 |
90031-PRA-000 |
from US $2.04 |
||
|
13
|
13
90041-PNC-000 BoltSTUD, 12X42 |
90041-PNC-000 |
US $4.22 |
||
|
14
|
14
90043-PNA-010 BoltSTUD, 12X91 |
90043-PNA-010 |
US $5.03 |
||
|
15
|
15
90202-PNA-003 Nut10MM |
90202-PNA-003 |
US $1.61 |
||
|
16
|
16
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
17
|
17
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
18
|
18
95701-080-450-8 BoltFLANGE, 8X45 |
95701-080-450-8 |
from US $0.81 |
||
|
19
|
19
95701-080-700-8 BoltFLANGE, 8X70 |
95701-080-700-8 |
from US $0.89 |
||
|
20
|
20
95701-120-600-8 BoltFLANGE, 12X60 |
95701-120-600-8 |
from US $1.18 |
||
|
21
|
21
95701-120-850-8 BoltFLANGE, 12X85 |
95701-120-850-8 |
US $1.63 |
