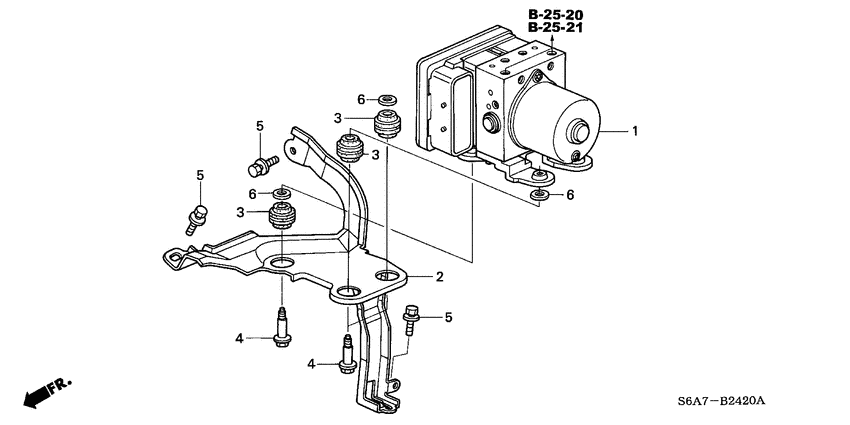

Vsa modulator Diagram Honda CIVIC
- Year
- 2004
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0VSA
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-S6E-G51
Modulator assy
|
57110-S6E-G51 |
— | ||
|
2
|
2
57115-S6E-G50 Bracket comp.MODULATOR |
57115-S6E-G50 |
US $35.07 |
||
|
3
|
3
57358-S04-003 RubberABS MOUNTING |
57358-S04-003 |
US $2.45 |
||
|
4
|
4
57376-S9A-003 BoltABS MOUNTING |
57376-S9A-003 |
US $3.71 |
||
|
5
|
5
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
6
|
6
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
