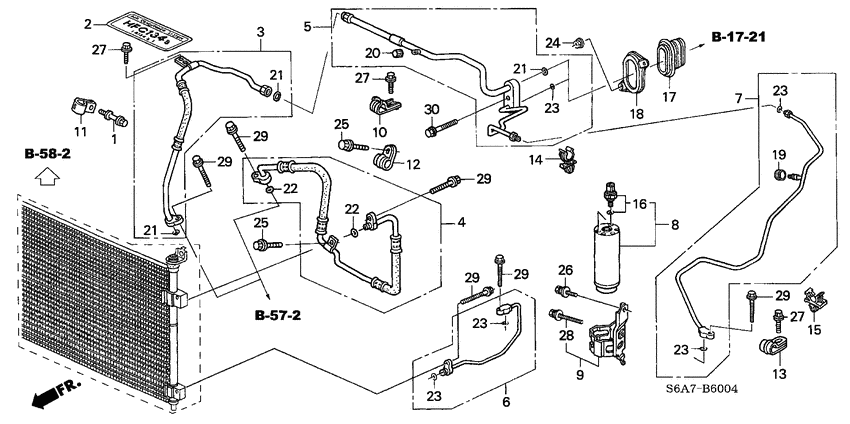

Air conditioner (HOSES/PIPES; RH; 2) Diagram Honda CIVIC
- Year
- 2003
- Model code
- CIVIC
- Sales region
- General
- Engine
- K20A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0
- abs
- +
- area code
- KE
- right-hand drive
- +
- air conditioner (auto)
- +
- leather seat
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15835-PNA-003 BoltVTC SOLENOID |
15835-PNA-003 |
US $1.89 |
||
|
2
|
2
80050-SP0-000 LabelAIR CONDITIONER CAUTION (HFC134A) |
80050-SP0-000 |
from US $1.39 |
||
|
3
|
3
80311-S5T-E02
Hose comp.
|
80311-S5T-E02 |
— | ||
|
4
|
4
80315-S5T-E01 Hose comp.DISCHARGE |
80315-S5T-E01 |
US $135.68 |
||
|
5
|
5
80325-S5T-E01 Pipe assy.AIR CONDITIONER |
80325-S5T-E01 |
US $133.12 |
||
|
6
|
6
80331-S6D-G01 PipeCONDENSER |
80331-S6D-G01 |
US $79.29 |
||
|
7
|
7
80341-S5T-E01 Pipe compRECEIVER |
80341-S5T-E01 |
US $83.20 |
||
|
8
|
8
80351-S6D-E21
Receiver comp
|
80351-S6D-E21 |
— | ||
|
9
|
9
80352-S5A-000
Bracket
|
80352-S5A-000 |
— | ||
|
10
|
10
80361-SK7-010 Clamp aSUCTION PIPE |
80361-SK7-010 |
US $4.34 |
||
|
11
|
11
80361-SP0-A00 ClampSUCTION PIPE |
80361-SP0-A00 |
US $4.90 |
||
|
12
|
12
80371-SF4-000 ClampDISCHARGE HOSE |
80371-SF4-000 |
US $3.78 |
||
|
13
|
13
80381-SL4-000 ClampRECEIVER PIPE |
80381-SL4-000 |
US $4.62 |
||
|
14
|
14
80381-S5T-003 ClampAIR CONDITIONER PIPE |
80381-S5T-003 |
US $2.52 |
||
|
15
|
15
80387-SM4-A01 ClipRECEIVER PIPE |
80387-SM4-A01 |
US $2.19 |
||
|
16
|
16
80440-S6A-003
Switch
|
80440-S6A-003 |
— | ||
|
17
|
17
80464-S5A-000 GrommetAIR CONDITIONER PIPE |
80464-S5A-000 |
US $5.04 |
||
|
18
|
18
80465-S5A-000 CoverAIR CONDITIONER PIPE |
80465-S5A-000 |
US $4.90 |
||
|
19
|
19
80865-S6D-003 CapVALVE (H) |
80865-S6D-003 |
US $2.94 |
||
|
20
|
20
80866-S5T-003 CapVALVE (L) |
80866-S5T-003 |
US $2.94 |
||
|
21
|
21
80871-ST7-000 O-ring5/8" |
80871-ST7-000 |
from US $2.69 |
||
|
22
|
22
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
23
|
23
80873-ST7-000 O-ring8MM |
80873-ST7-000 |
from US $2.37 |
||
|
24
|
24
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
from US $1.47 |
||
|
25
|
25
93403-060-120-4 Bolt-washer6X12 |
93403-060-120-4 |
US $0.59 |
||
|
26
|
26
93403-060-160-4 Bolt-washer6X16 |
93403-060-160-4 |
US $0.59 |
||
|
27
|
27
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.65 |
||
|
28
|
28
93403-060-250-4 Bolt-washer6X25 |
93403-060-250-4 |
US $0.74 |
||
|
29
|
29
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
30
|
30
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
