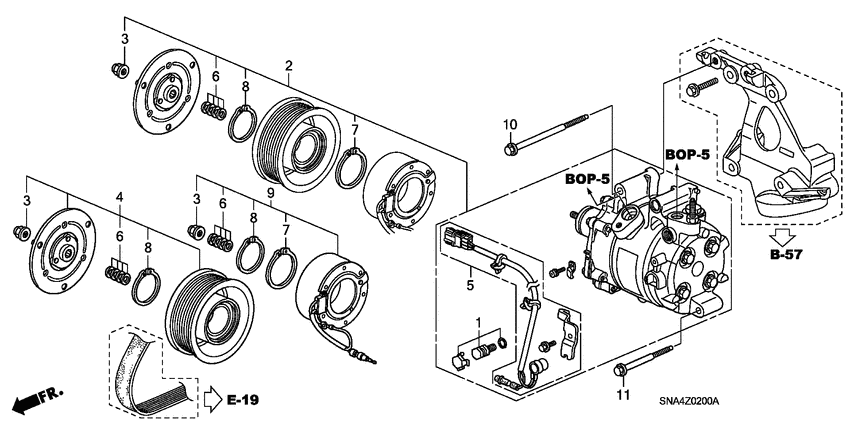

Air conditioner (COMPRESSOR) Diagram Honda CIVIC
- Year
- 2008
- Model code
- CIVIC
- Sales region
- General
- Engine
- R18A
- transmission
- 5AT
- Number of doors
- 4
- grade
- DX
- area code
- KA
- side srs
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38801-PDF-E02
Valve sub assy.
|
38801-PDF-E02 |
— | ||
|
2
|
2
38810-RNA-A01 Compressor comp. |
38810-RNA-A01 |
US $960 |
||
|
3
|
3
38829-PDF-E02 Nut9MM |
38829-PDF-E02 |
US $1.61 |
||
|
4
|
4
38900-RNA-A01
Clutch set
|
38900-RNA-A01 |
— | ||
| replacement | |||||
|
4
|
4
38900-RNC-Z51 Clutch setCOMPRESSOR |
38900-RNC-Z51 |
US $294.71 |
||
|
5
|
5
38908-RNA-A01 Protector setTHERMAL |
38908-RNA-A01 |
US $57 |
||
|
6
|
6
38912-PE1-702 Shim set |
38912-PE1-702 |
US $3.74 |
||
|
7
|
7
38913-PP4-E02 RingSNAP |
38913-PP4-E02 |
US $3.36 |
||
|
8
|
8
38914-P07-004 Ring fSNAP |
38914-P07-004 |
US $1.89 |
||
|
9
|
9
38924-RNA-A01 Coil setFIELD |
38924-RNA-A01 |
from US $110 |
||
|
10
|
10
90023-PNA-000 BoltFLANGE, 8X80 |
90023-PNA-000 |
US $1.89 |
||
|
11
|
11
90024-PNA-000 BoltFLANGE, 8X65 |
90024-PNA-000 |
US $1.89 |
||
