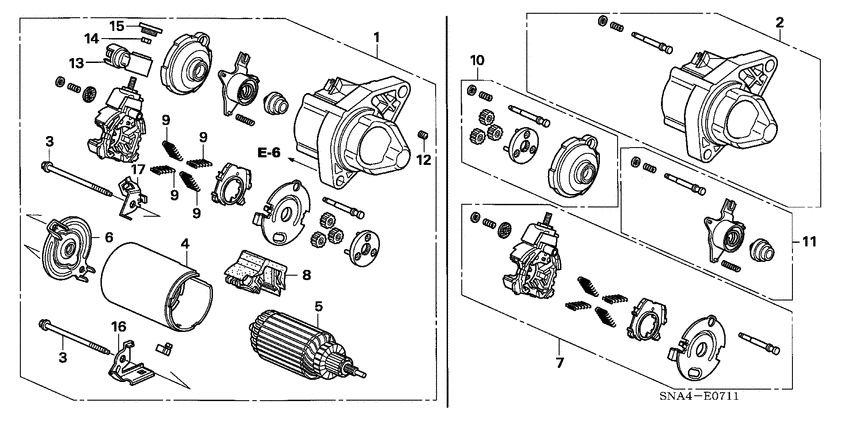

Starter motor (MITSUBA; 1.8L) Diagram Honda CIVIC
- Year
- 2008
- Model code
- CIVIC
- Sales region
- General
- Engine
- R18A
- transmission
- 5AT
- Number of doors
- 4
- grade
- DX
- area code
- KA
- side srs
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31200-RNA-A51 Motor assy.STARTER(SM-71001) (MITSUBA) |
31200-RNA-A51 |
US $748.80 |
||
|
2
|
2
31201-RNA-A52
Gear cover set
|
31201-RNA-A52 |
— | ||
|
3
|
3
31202-RNA-A51 Bolt |
31202-RNA-A51 |
US $3.08 |
||
|
4
|
4
31206-RNA-A51
Yoke assy.
|
31206-RNA-A51 |
— | ||
|
5
|
5
31207-RNA-A51 Armature assy. |
31207-RNA-A51 |
US $273.92 |
||
|
6
|
6
31209-RNA-A51 Bracket unitRR. |
31209-RNA-A51 |
US $5.88 |
||
|
7
|
7
31210-RNA-A51 Brush holder set |
31210-RNA-A51 |
US $71.40 |
||
| replacement | |||||
|
7
|
7
31210-RNA-A52 Brush holder set |
31210-RNA-A52 |
US $71.40 |
||
|
8
|
8
31211-RNA-A51 CoverSWITCH |
31211-RNA-A51 |
US $5.04 |
||
|
9
|
9
31213-PHM-004
Spring
|
31213-PHM-004 |
— | ||
|
10
|
10
31220-RNA-A51 Gear setREDUCTION |
31220-RNA-A51 |
US $197.12 |
||
|
11
|
11
31230-RNA-A61 Plunger set |
31230-RNA-A61 |
US $28.29 |
||
|
12
|
12
31252-PD2-006 RubberBUSH (MITSUBA) |
31252-PD2-006 |
from US $1.96 |
||
|
13
|
13
31261-RNA-A51
Terminal comp.
|
31261-RNA-A51 |
— | ||
|
14
|
14
31262-RNA-A51 NutTHIN, 8MM |
31262-RNA-A51 |
US $0.42 |
||
|
15
|
15
31263-RNA-A51 Cap |
31263-RNA-A51 |
US $1.05 |
||
|
16
|
16
31292-RNA-A51
Stay
|
31292-RNA-A51 |
— | ||
|
17
|
17
31293-RNA-A51
Stay
|
31293-RNA-A51 |
— | ||
