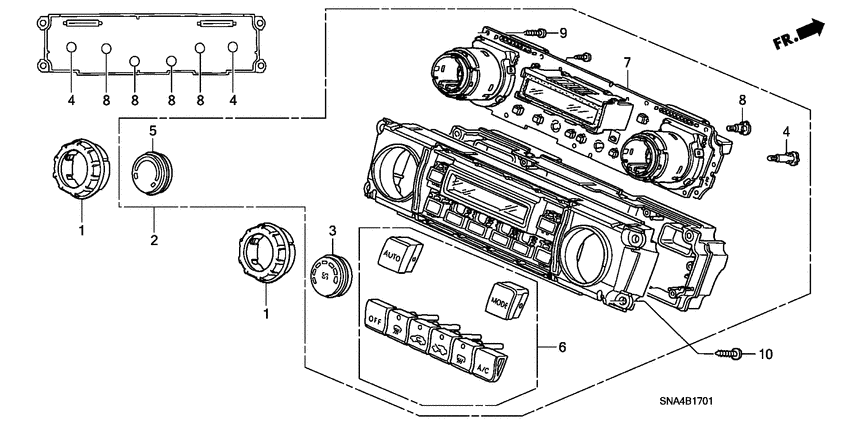

Auto air conditioner control Diagram Honda CIVIC
- Year
- 2008
- Model code
- CIVIC
- Sales region
- General
- Engine
- R18A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-L
- area code
- KX
- sunroof
- +
- auto cruise
- +
- navigation
- +
- side srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79581-SNB-941ZA KnobDIAL *NH609L* |
79581-SNB-941ZA |
US $10.50 |
||
|
2
|
2
79600-SNJ-M42ZB
Control assy.
|
79600-SNJ-M42ZB |
— | ||
|
2
|
2
79600-SNJ-M42ZA Control assy.AUTO AIR CONDITIONER *NH608L* |
79600-SNJ-M42ZA |
US $632.32 |
||
|
3
|
3
79609-SNB-941ZC Panel assy.FAN *NH618L* |
79609-SNB-941ZC |
US $10.22 |
||
|
3
|
3
79609-SNB-941ZB Panel assy.FAN *YR335L* |
79609-SNB-941ZB |
US $10.22 |
||
|
4
|
4
79609-S5A-003 BulbNEO WEDGE (14V 100MA) |
79609-S5A-003 |
from US $2.77 |
||
|
5
|
5
79610-SNB-941ZB Panel assy.TEMPERATURE *YR335L* |
79610-SNB-941ZB |
US $10.22 |
||
|
5
|
5
79610-SNB-941ZC Panel assy.TEMPERATURE *NH618L* |
79610-SNB-941ZC |
US $10.22 |
||
|
6
|
6
79611-SNJ-M41ZA Knob set *nh608l* |
79611-SNJ-M41ZA |
US $39.94 |
||
|
6
|
6
79611-SNJ-M41ZB Knob set *yr334l* |
79611-SNJ-M41ZB |
US $39.94 |
||
|
7
|
7
79612-SNJ-M42 Board assyPRINTED CIRCUIT |
79612-SNJ-M42 |
US $300.80 |
||
|
8
|
8
79613-SNB-941 BulbNEO WEDGE (T4.2) |
79613-SNB-941 |
from US $2.38 |
||
|
9
|
9
93901-22220 ScrewTAPPING, 3X10 |
93901-22220 |
from US $0.37 |
||
|
10
|
10
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
