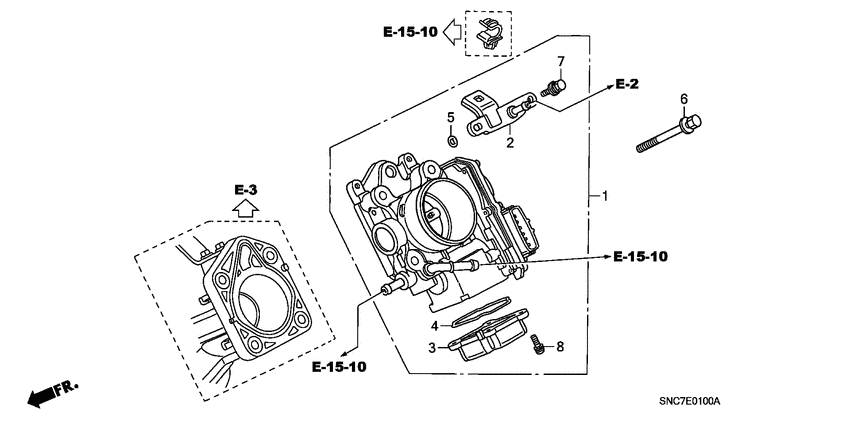

Throttle body Diagram Honda CIVIC
- Year
- 2006
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX
- area code
- KE
- right-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16400-RMX-003
Throttle body
|
16400-RMX-003 |
— | ||
|
2
|
2
16403-RMX-000 Joint compPCS |
16403-RMX-000 |
US $25.22 |
||
|
3
|
3
16430-RTA-J01 Case comp.LOWER |
16430-RTA-J01 |
US $9.24 |
||
|
4
|
4
16431-RTA-J01 GasketLOWER CASE |
16431-RTA-J01 |
US $8.26 |
||
|
5
|
5
91301-PWA-003 O-ring6.6X2.4 (NOK) |
91301-PWA-003 |
US $1.19 |
||
|
6
|
6
93401-080-600-8 Bolt-washer8X60 |
93401-080-600-8 |
US $0.81 |
||
|
7
|
7
93403-050-140-8 Bolt-washer5X14 |
93403-050-140-8 |
US $0.59 |
||
|
8
|
8
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
