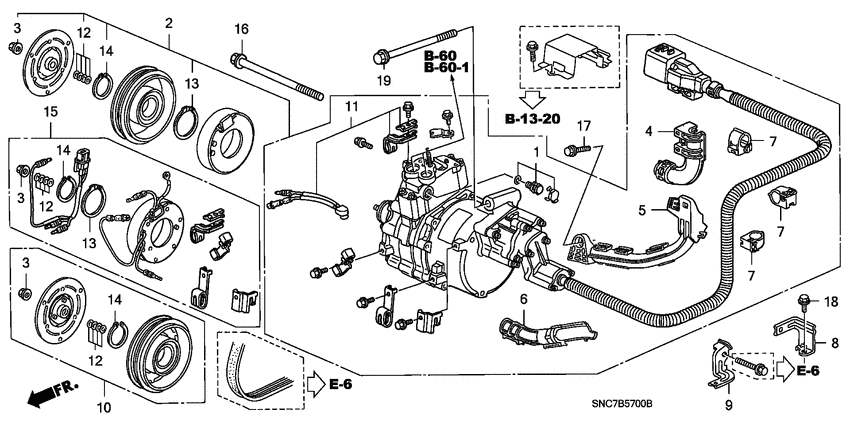

Air conditioner (COMPRESSOR) Diagram Honda CIVIC
- Year
- 2011
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MXB
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38801-PHM-004
Valve sub assy.
|
38801-PHM-004 |
— | ||
|
2
|
2
38810-RMX-A01 Compressor comp. |
38810-RMX-A01 |
US $806.40 |
||
|
3
|
3
38829-PDF-E02 Nut9MM |
38829-PDF-E02 |
US $1.61 |
||
|
4
|
4
38872-RMX-A01 HolderCORRUGATED |
38872-RMX-A01 |
US $5.88 |
||
|
5
|
5
38873-RMX-A04 Holder aCOMPRESSOR CABLE |
38873-RMX-A04 |
US $10.92 |
||
|
6
|
6
38874-RMX-A03 Holder bCOMPRESSOR CABLE |
38874-RMX-A03 |
US $6.72 |
||
|
7
|
7
38875-RCJ-A01 HolderCOMPRESSOR TUBE |
38875-RCJ-A01 |
US $6.86 |
||
|
8
|
8
38876-RMX-A01
Stay a
|
38876-RMX-A01 |
— | ||
|
9
|
9
38878-RMX-A03
Stay b
|
38878-RMX-A03 |
— | ||
|
10
|
10
38900-RMX-A01 Clutch setCOMPRESSOR |
38900-RMX-A01 |
US $259.76 |
||
|
11
|
11
38908-RCJ-A02 Protector setTHERMAL |
38908-RCJ-A02 |
US $41.48 |
||
|
12
|
12
38912-PE1-702 Shim set |
38912-PE1-702 |
US $3.74 |
||
|
13
|
13
38913-PP4-E02 RingSNAP |
38913-PP4-E02 |
US $3.36 |
||
|
14
|
14
38914-P07-004 Ring fSNAP |
38914-P07-004 |
US $1.89 |
||
|
15
|
15
38924-RMX-A01 Coil setFIELD |
38924-RMX-A01 |
US $102.68 |
||
|
16
|
16
90023-RMX-A00 BoltFLANGE, 10X100 |
90023-RMX-A00 |
US $3.71 |
||
|
17
|
17
90051-RGA-003 BoltSPECIAL, 6X20.8 |
90051-RGA-003 |
US $1.61 |
||
|
18
|
18
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
19
|
19
95801-100-800-8 BoltFLANGE, 10X80 |
95801-100-800-8 |
from US $1.18 |
