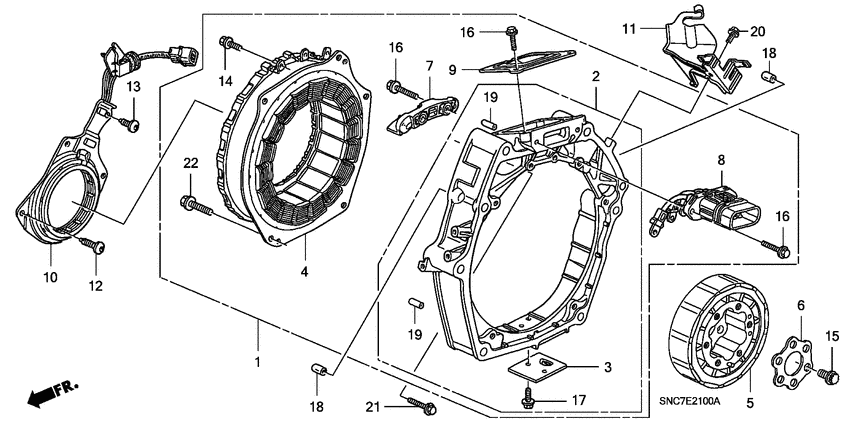

Ima motor Diagram Honda CIVIC
- Year
- 2011
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MXB
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A200-RMX-000 Housing assy. |
1A200-RMX-000 |
US $1,304.32 |
||
|
2
|
2
1A220-RMX-000
Housing comp
|
1A220-RMX-000 |
— | ||
|
3
|
3
1A226-PHM-300 CoverDRAIN |
1A226-PHM-300 |
US $5.04 |
||
|
4
|
4
1A240-RMX-305
Stator assy.
|
1A240-RMX-305 |
— | ||
|
5
|
5
1A300-RMX-010 Rotor assy. |
1A300-RMX-010 |
US $1,694.72 |
||
|
6
|
6
1A335-PZA-000
Spacer
|
1A335-PZA-000 |
— | ||
|
7
|
7
1A420-RMX-000 Base comp.TERMINAL |
1A420-RMX-000 |
US $23.55 |
||
|
8
|
8
1A460-RMX-013 Cable assyMOTOR |
1A460-RMX-013 |
US $148.48 |
||
|
9
|
9
1A511-RMX-000 CoverTERMINAL |
1A511-RMX-000 |
US $5.74 |
||
|
10
|
10
1A810-RMX-013 Sensor assyRESOLVER |
1A810-RMX-013 |
US $368.64 |
||
|
11
|
11
36533-RMX-000
Stay
|
36533-RMX-000 |
— | ||
|
12
|
12
90005-RMX-000 BoltSPECIAL, 8X22 |
90005-RMX-000 |
US $3.43 |
||
|
13
|
13
90006-RMX-000 BoltSPECIAL, 8X15 |
90006-RMX-000 |
US $3.01 |
||
|
14
|
14
90007-PZA-000 BoltFLANGE, 6X12(FOR BUSBAR) |
90007-PZA-000 |
US $1.19 |
||
|
15
|
15
90011-PCX-B01 Bolt12MM |
90011-PCX-B01 |
from US $5.18 |
||
|
16
|
16
93401-060-200-8 Bolt-washer6X20 |
93401-060-200-8 |
from US $0.55 |
||
|
17
|
17
93404-060-160-5 Bolt-washer6X16 |
93404-060-160-5 |
US $0.52 |
||
|
18
|
18
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
19
|
19
94303-08140 Dowel pin8X14 |
94303-08140 |
from US $0.89 |
||
|
20
|
20
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
21
|
21
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
22
|
22
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
