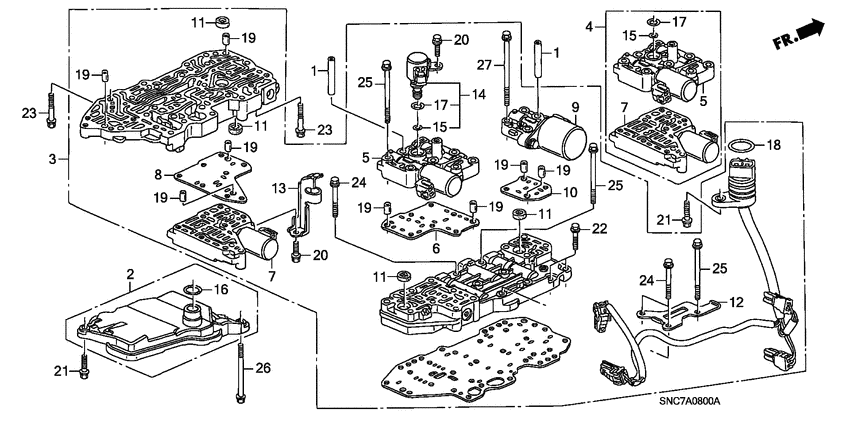

Valve body Diagram Honda CIVIC
- Year
- 2011
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MXB
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22743-PW4-000 Pipe8X40 |
22743-PW4-000 |
US $2.03 |
||
|
2
|
2
25420-PHT-003 StrainerTRANSMISSION (ATF) |
25420-PHT-003 |
from US $66.79 |
||
|
3
|
3
27000-RPS-000 Body assyMAIN VALVE |
27000-RPS-000 |
US $1,280 |
||
|
5
|
5
27200-PZC-003 Body assyDRIVEN PULLEY CONTROL VALVE |
27200-PZC-003 |
US $204.80 |
||
|
6
|
6
27212-PZC-000 PlateDRIVEN CONTROL SEPARATING |
27212-PZC-000 |
US $9.38 |
||
|
7
|
7
27500-RPS-003 Body assyDRIVE PULLEY CONTROL VALVE |
27500-RPS-003 |
US $200.96 |
||
|
8
|
8
27512-PZC-000 PlateDRIVE PULLEY CONTROL SEPARATING |
27512-PZC-000 |
US $8.26 |
||
|
9
|
9
27600-PZC-003 Body assySTART CLUTCH CONTROL VALVE |
27600-PZC-003 |
US $167.68 |
||
|
10
|
10
27612-PZC-000 PlateSTART CLUTCH CONTROL SEPARATING |
27612-PZC-000 |
US $5.74 |
||
|
11
|
11
27750-P4V-000 FilterSECONDARY BODY |
27750-P4V-000 |
US $5.32 |
||
|
12
|
12
28365-PHT-000 Clamp aSOLENOID HARNESS |
28365-PHT-000 |
US $3.43 |
||
|
13
|
13
28366-PLY-000 Clamp bSOLENOID HARNESS |
28366-PLY-000 |
US $3.43 |
||
|
14
|
14
28400-PZC-003
Solenoid assy.
|
28400-PZC-003 |
— | ||
|
15
|
15
91301-P6H-003 O-ring7.6X1.9 (KEIHIN) |
91301-P6H-003 |
from US $1.48 |
||
|
16
|
16
91301-P7X-003 O-ring19.20X1.90(NOK) |
91301-P7X-003 |
from US $1.70 |
||
|
17
|
17
91303-P6H-003 O-ring11.7X1.9 (KEIHIN) |
91303-P6H-003 |
from US $1.48 |
||
|
18
|
18
91329-P4V-003 O-ring27.5X2.4 |
91329-P4V-003 |
US $1.96 |
||
|
19
|
19
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
20
|
20
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
21
|
21
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
22
|
22
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
23
|
23
95701-060-350-7 BoltFLANGE, 6X35 |
95701-060-350-7 |
from US $0.59 |
||
|
24
|
24
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
|
25
|
25
95701-060-650-8 BoltFLANGE, 6X65 |
95701-060-650-8 |
from US $0.81 |
||
|
26
|
26
95701-060-750-7 BoltFLANGE, 6X75 |
95701-060-750-7 |
US $1.48 |
||
|
27
|
27
95701-060-900-8 BoltFLANGE, 6X90 |
95701-060-900-8 |
from US $0.89 |
