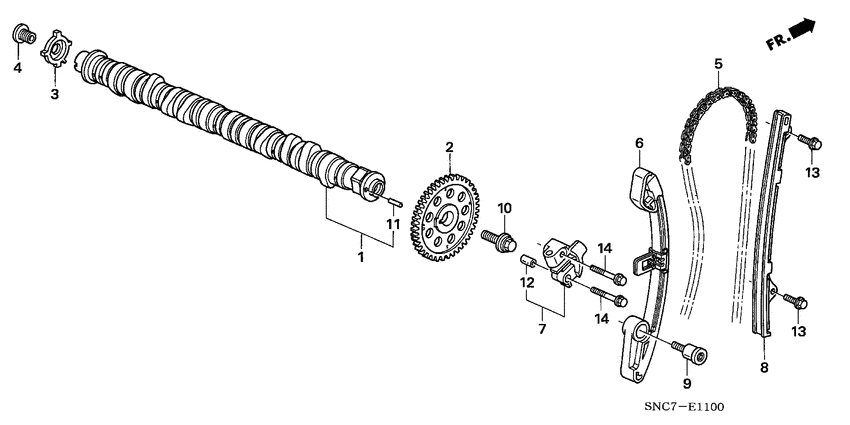

Camshaft/cam chain Diagram Honda CIVIC
- Year
- 2011
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX
- area code
- KG
- left-hand drive
- +
- leather seat
- +
- corner sensor
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-RMX-000 Camshaft comp. |
14110-RMX-000 |
US $268.80 |
||
|
2
|
2
14211-PWA-000 SprocketCAM CHAIN DRIVEN (46T) |
14211-PWA-000 |
US $137.28 |
||
|
3
|
3
14221-PZA-003 PlateTDC PULSER |
14221-PZA-003 |
US $9.38 |
||
|
4
|
4
14222-PWA-004 BoltTDC PULSER PLATE |
14222-PWA-004 |
from US $2.73 |
||
|
5
|
5
14401-PWA-004 Chain126L |
14401-PWA-004 |
US $99.96 |
||
|
6
|
6
14510-PWA-004 Tensioner compCAM CHAIN |
14510-PWA-004 |
US $77.52 |
||
|
7
|
7
14512-RMX-000 Slider comp.CAM CHAIN TENSIONER |
14512-RMX-000 |
from US $19.31 |
||
|
8
|
8
14530-RMX-004
Guide comp, CAM CHAIN
|
14530-RMX-004 |
— | ||
|
9
|
9
90003-PNA-000 BoltTENSIONER PIVOT |
90003-PNA-000 |
from US $4.14 |
||
|
10
|
10
90031-PV0-003 Bolt-washer10X30 |
90031-PV0-003 |
US $9.25 |
||
| replacement | |||||
|
10
|
10
90031-PV0-305 Bolt-washer (10x30) |
90031-PV0-305 |
from US $4.29 |
||
|
11
|
11
90703-PWA-003 Dowel pin2.5X10 |
90703-PWA-003 |
from US $1.19 |
||
|
12
|
12
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
13
|
13
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
14
|
14
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
